NW Conversions 22-Gallon Sprinter Wheel Well Water Tank - Right (SP-R-22)

$269.10 USD $299.00 USD

Make use of the space your wheel well would otherwise waste with the NW Conversions 22-Gallon Right Wheel Well Water Tank (SP-R-22). This tank features an offset design that sits over the Mercedes Sprinter wheel well, keeping your interior floor plan open while adding serious fresh water capacity to your van build.

Space-Saving Offset Design: Sits offset over the wheel well to maximize layout flexibility, positioning the bulk of the tank either toward the front or rear depending on which side it is installed.
Food-Grade Construction: Molded from BPA-free, food-grade plastic, ensuring a safe fresh water supply for your off-grid travels.
Highly Adaptable Port Layout: Features an expansive array of open and pre-marked NPT ports on the top and both ends for maximum plumbing, filling, or level sensor flexibility.
Certified Quality: Manufactured in the USA and IAPMO TS 4 certified to meet strict quality and material safety standards.

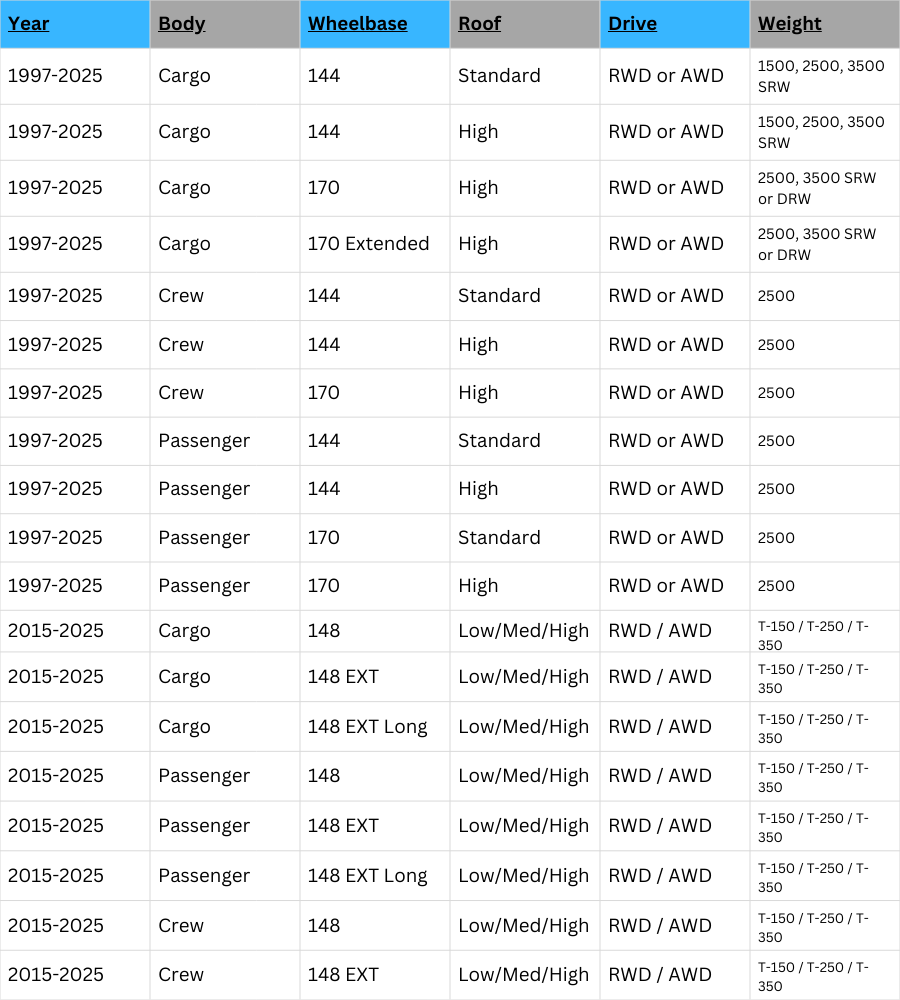

Mercedes-Benz Sprinter: Direct fit for Sprinter 2500 models, including T1N and newer generations.
Ford Transit (Single Rear Wheel): Fits securely, leaving a slight gap around the wheel well that is ideal for adding insulation or sound deadening.
Ram ProMaster: Fits but requires a 3.5" platform elevation to properly clear the ProMaster's larger factory wheel housing.
Placement Orientation: Can be placed on either the driver or passenger side of the vehicle. On the driver side, the tank body sits to the front of the wheel well. On the passenger side, the tank body sits to the rear of the wheel well.

[1] 22-Gallon Right Wheel Well Water Tank

[1] Set of Adjustable Mounting Straps

[1] Set of Mounting Brackets

Capacity: 22 gallons
Dimensions: 31" L × 18" W × 16" H
Product Weight: 26 lbs (Empty)
Material: BPA-free, food-grade plastic
Certifications: IAPMO TS 4 Certified
Venting Required: Not designed for pressurized systems, must be vented

Plumbing Port Configuration:

Rectangular End: (2) 1.5" NPT ports (pre-marked, drill out to use) & (2) 1/2" NPT ports
Opposite End: (2) 1.5" NPT ports (pre-marked, drill out to use) & (1) 1/2" NPT port
Top: (1) 1.5" NPT port for fill or level sensor (pre-marked, drill out to use)

Frequently bought together:

Important Notes & Pro Tips

Venting Requirement: This tank is designed for non-pressurized systems and must be properly vented to open air to operate safely.
Drilling Sealed Ports: The 1.5" NPT ports arrive sealed from the factory to protect tank integrity. You must drill out these pre-marked areas to open them for plumbing.
