NW Conversions 24-Gallon Transit Wheel Well Water Tank - Left (TR-L-24)

$269.10 USD $299.00 USD

NW Conversions 24-Gallon Transit Wheel Well Water Tank - Left (TR-L-24)

GoCode

NW Conversions 24-Gallon Transit Wheel Well Water Tank - Left (TR-L-24)

$269.10 USD $299.00 USD

Designed specifically for the Ford Transit, the NW Conversions 24-Gallon Left Wheel Well Water Tank (TR-L-24) transforms the space around your wheel well into valuable fresh water storage. It sits offset toward the rear or front of the wheel well depending on placement side, keeping your floor plan open while adding serious water capacity for your van build.

Space-Saving Offset Design: Sits offset over the wheel well to maximize floor plan flexibility, positioning the bulk of the tank either toward the front or rear depending on which side it is installed.
Food-Grade Construction: Molded from BPA-free, food-grade polyethylene, ensuring a safe fresh water supply for your off-grid travels.
Versatile Port Layout: Features multiple pre-marked and open NPT ports on the top, end, and bottom for flexible plumbing configurations, drainage, or level sensor installation.
Certified Quality: Manufactured in the USA and IAPMO TS 4 certified to meet strict quality and material safety standards.

Make & Model: Designed specifically for Ford Transit cargo and passenger vans.

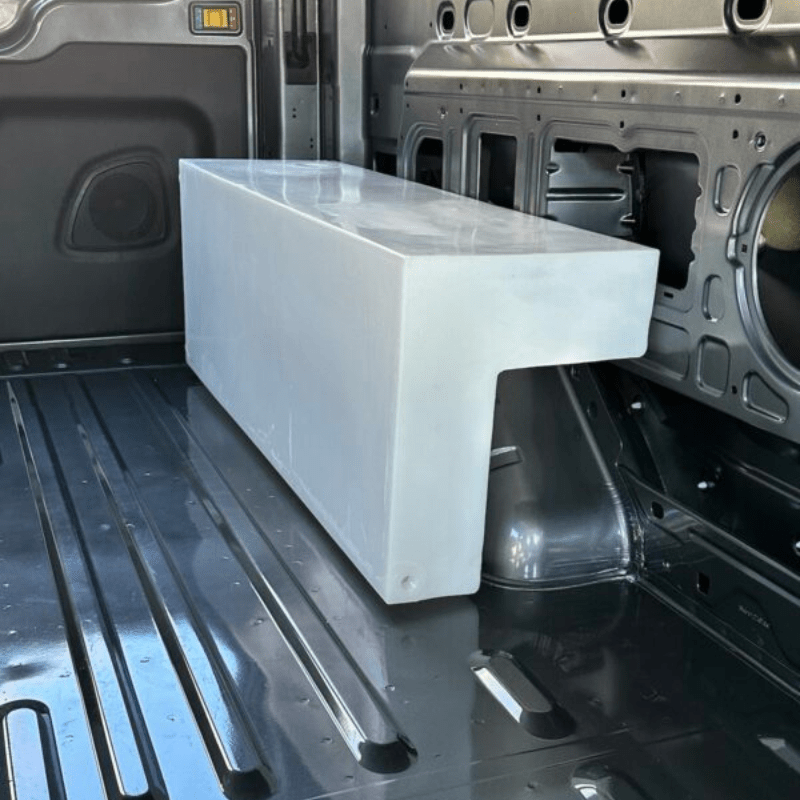

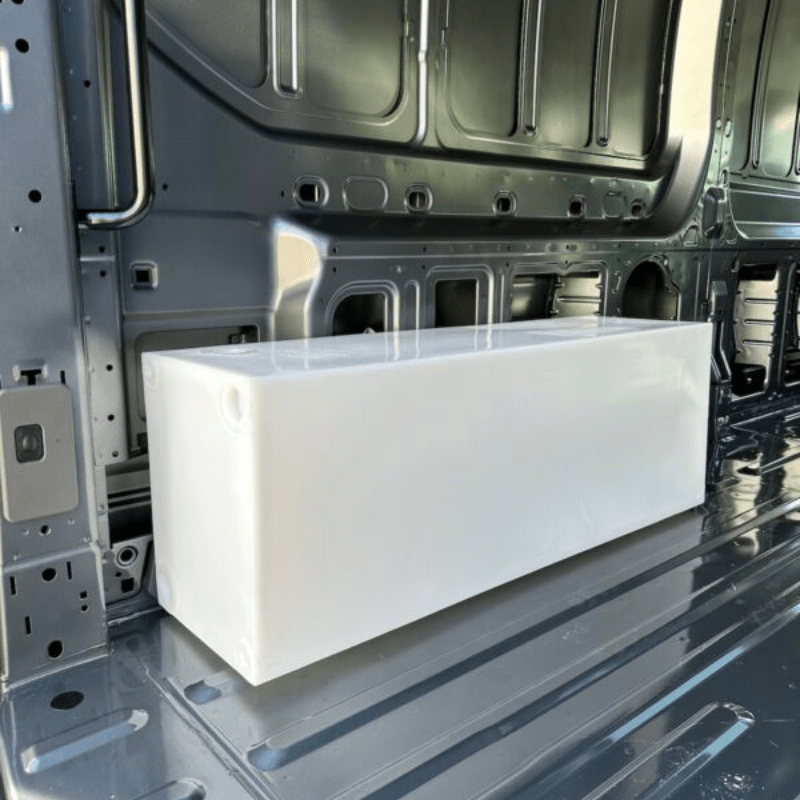

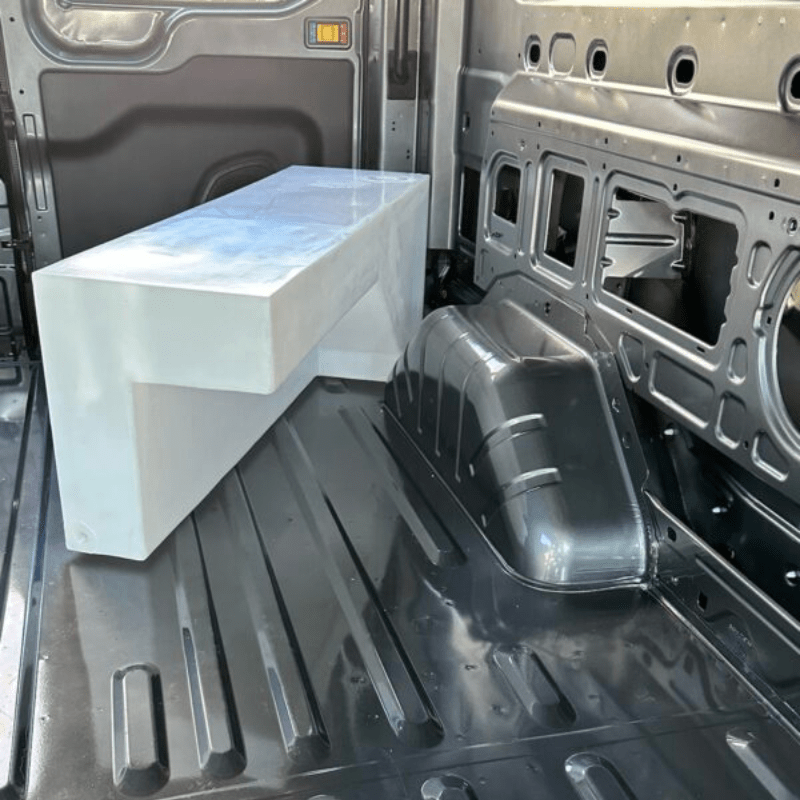

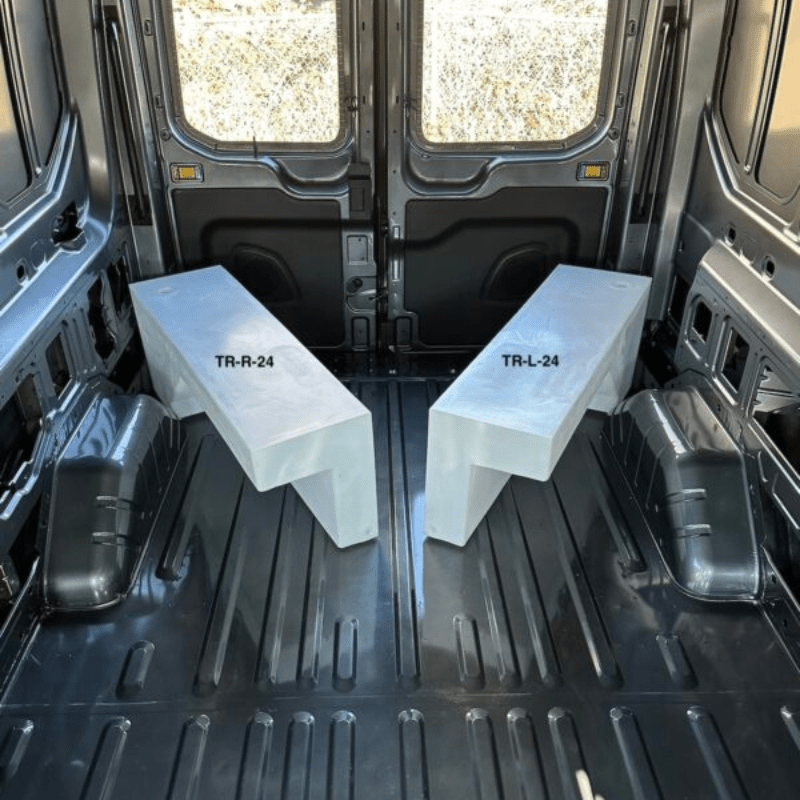

Placement Orientation: Can be placed on either the driver or passenger side of the vehicle. On the driver side, the majority of the tank body sits to the rear of the wheel well. On the passenger side, the majority of the tank body sits to the front of the wheel well.
Universal Fitment: May also fit other vehicle makes, models, or custom builds where physical dimensions allow.

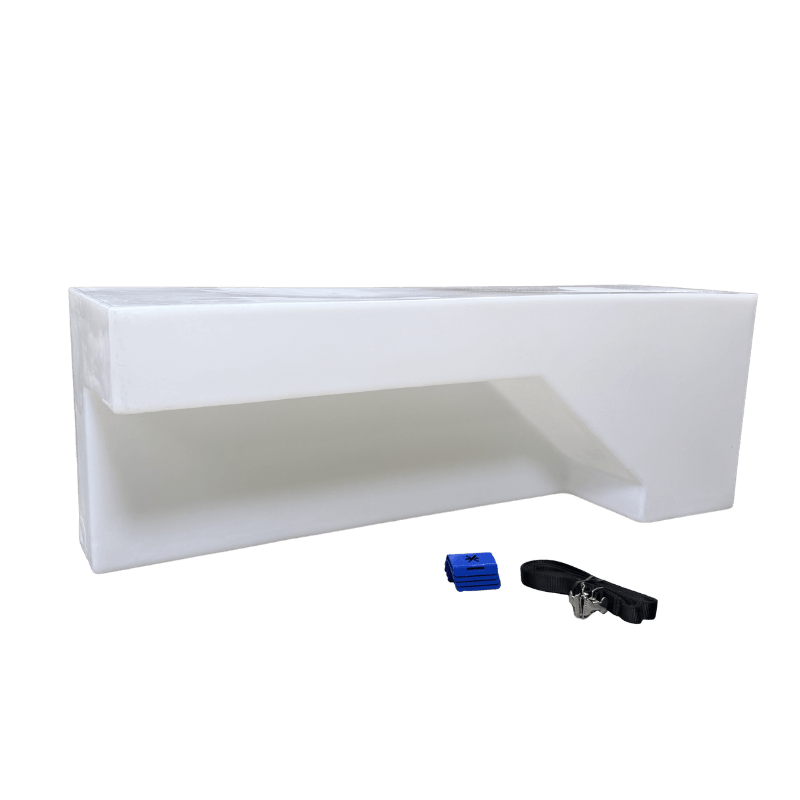

[1] 24-Gallon Left Wheel Well Water Tank

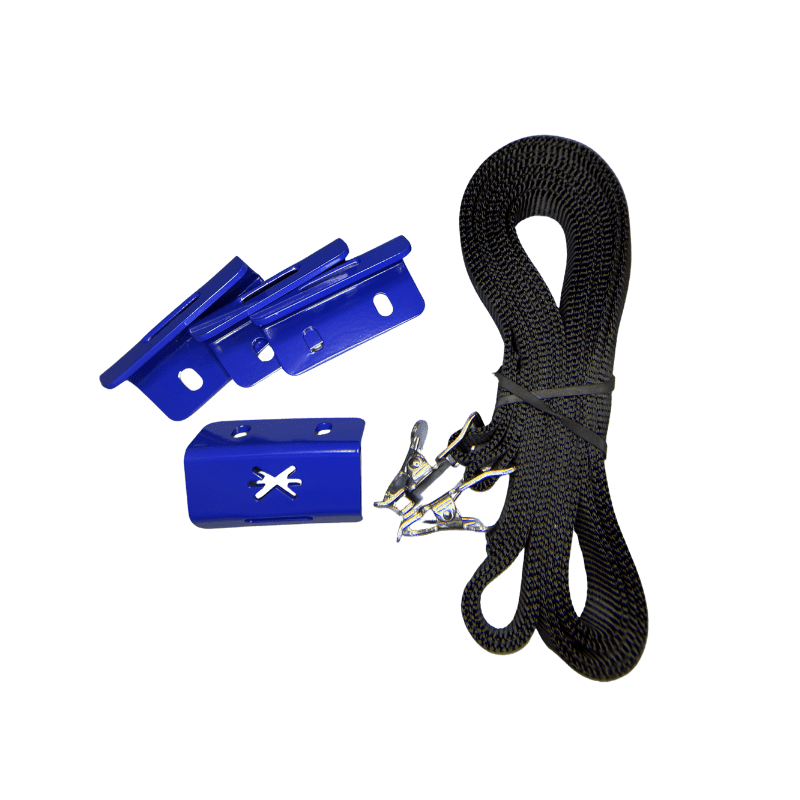

[2] Adjustable Mounting Straps

[4] Mounting Brackets

Capacity: 24 gallons

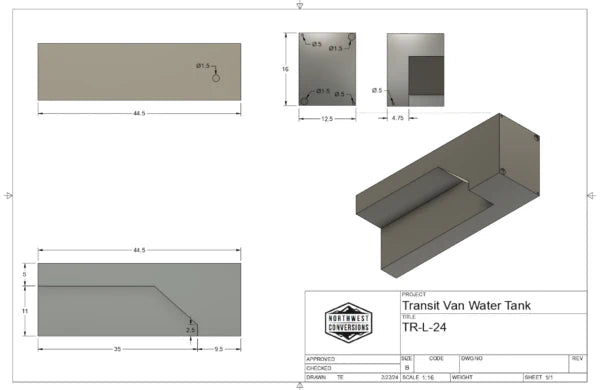

Dimensions: 44.5" L × 16" W × 12.5" H
Product Weight: 22 lbs (Empty)
Material: BPA-free, food-grade polyethylene
Certifications: IAPMO TS 4 Certified
Venting Required: Not designed for pressurized systems, must be vented

Plumbing Port Configuration:

Rectangular End: (2) 1.5" NPT ports (pre-marked, drill out to use) & (2) 1/2" NPT ports
Open End: (1) 1/2" NPT port
Top: (1) 1.5" NPT port for fill or level sensor (pre-marked, drill out to use)

Frequently bought together:

Important Notes & Pro Tips

Venting Requirement: This tank is designed for non-pressurized systems and must be properly vented to open air to operate safely.
Drilling Sealed Ports: The 1.5" NPT ports arrive sealed from the factory to protect tank integrity. You must drill out these pre-marked areas to open them for plumbing.
