NW Conversions 28-Gallon ProMaster Wheel Well Water Tank - Center (PM-C-28)

$296.10 USD $329.00 USD

Designed for the Ram ProMaster, the NW Conversions 28-Gallon Center Wheel Well Water Tank (PM-C-28) transforms the space around your wheel well into valuable fresh water storage. The centered design contours over the wheel housing, letting you build your bed or cabinetry flush against the wall without losing interior volume.

Space-Saving Center Design: Sits centered directly over the wheel well to optimize internal layout space and maintain an open garage or living area.
Food-Grade Construction: Molded from BPA-free, food-grade plastic, ensuring a safe fresh water supply for your off-grid travels.
Versatile Port Layout: Features multiple pre-marked and open NPT ports on the top and ends for flexible plumbing, filling, or level sensor installation.
Certified Quality: Manufactured in the USA and IAPMO TS 4 certified to meet strict quality and material safety standards.

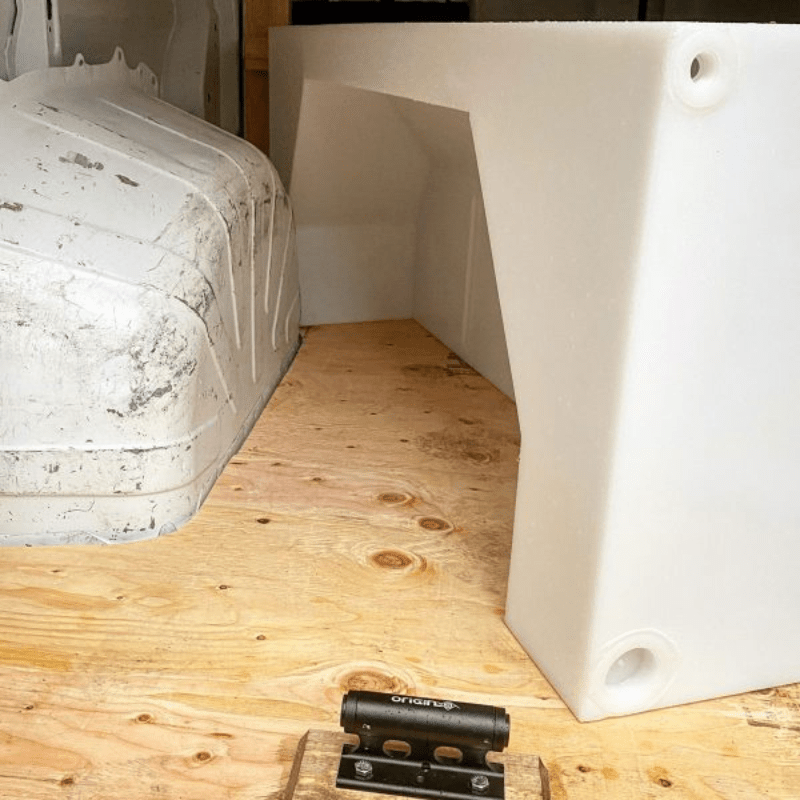

Ram ProMaster: Designed for a fit over the factory wheel well housing.
Mercedes Sprinter & Ford Transit: Compatible, leaving a gap around the top of the wheel well that is ideal for adding insulation or sound deadening.
Universal Fitment: Suitable for box trucks, trailers, or custom builds where physical dimensions allow.
Placement Versatility: Symmetrical footprint allows the tank to be placed on either the driver side or passenger side of the vehicle.

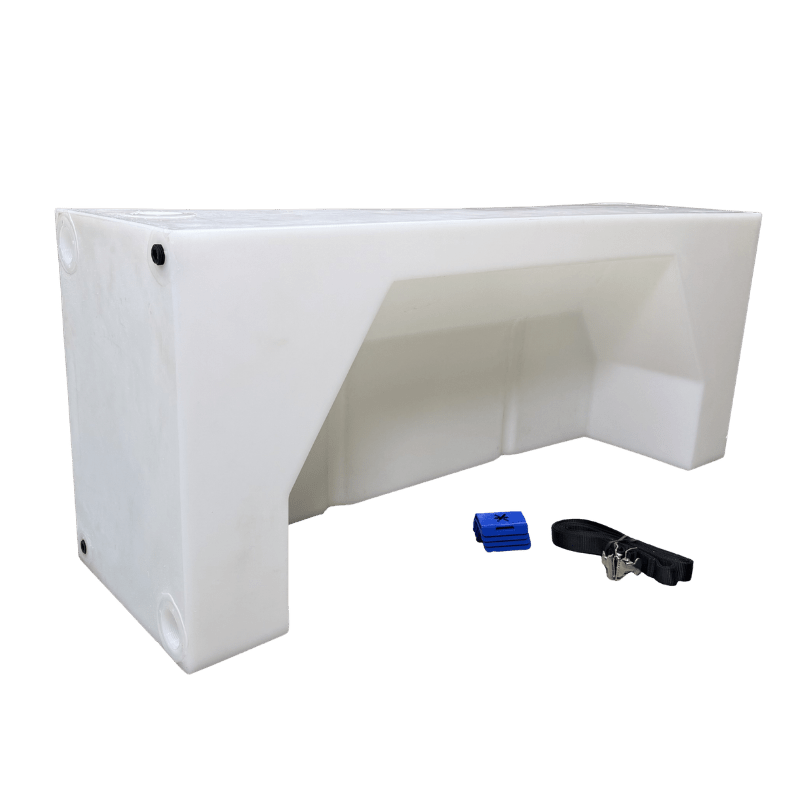

[1] 28-Gallon Center Wheel Well Water Tank

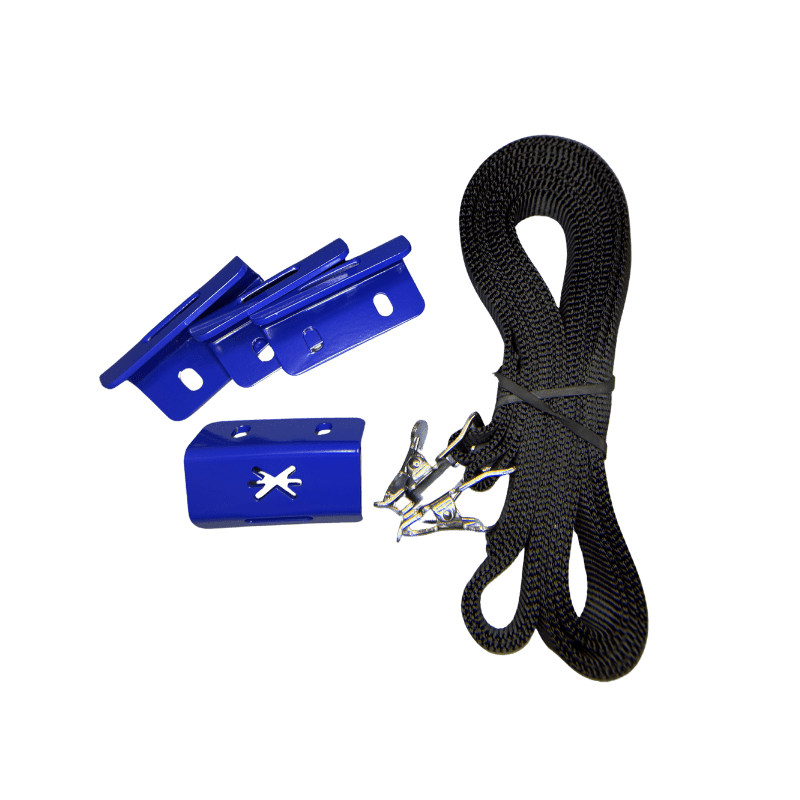

[2] Adjustable Mounting Straps

[4] Mounting Brackets

Capacity: 28 gallons

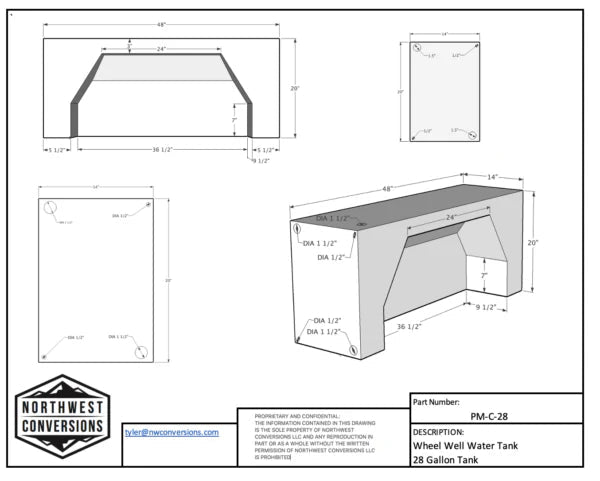

Dimensions: 48" L × 14" W × 20" H
Product Weight: 31 lbs (Empty)
Material: BPA-free, food-grade plastic
Certifications: IAPMO TS 4 Certified
Venting Required: Not designed for pressurized systems, must be vented

Plumbing Port Configuration:

Ends: (2) 1.5" NPT ports (pre-marked, drill out to use) & (2) 1/2" NPT ports (open and ready to use)
Top: (1) 1.5" NPT port for fill or level sensor (pre-marked, drill out to use)

Frequently bought together:

Important Notes & Pro Tips

Venting Requirement: This tank is designed for non-pressurized systems and must be properly vented to open air to operate safely.
Drilling Sealed Ports: The 1.5" NPT ports arrive sealed from the factory to protect tank integrity. You must drill out these pre-marked areas to open them for plumbing.
Sprinter & Transit Clearance: When installed in a Sprinter or Transit, the clearance space between the tank contour and the wheel well provides a pocket for thermal or acoustic insulation.
