NW Conversions 28-Gallon ProMaster Wheel Well Water Tank - Left (PM-L-28)

$296.10 USD $329.00 USD

NW Conversions 28-Gallon ProMaster Wheel Well Water Tank - Left (PM-L-28)

GoCode

NW Conversions 28-Gallon ProMaster Wheel Well Water Tank - Left (PM-L-28)

Name: NW Conversions 28-Gallon ProMaster Wheel Well Water Tank - Left (PM-L-28)
Brand: GoCode
SKU: NWP0261
Price: 296.10 USD
Availability: InStock

$296.10 USD $329.00 USD

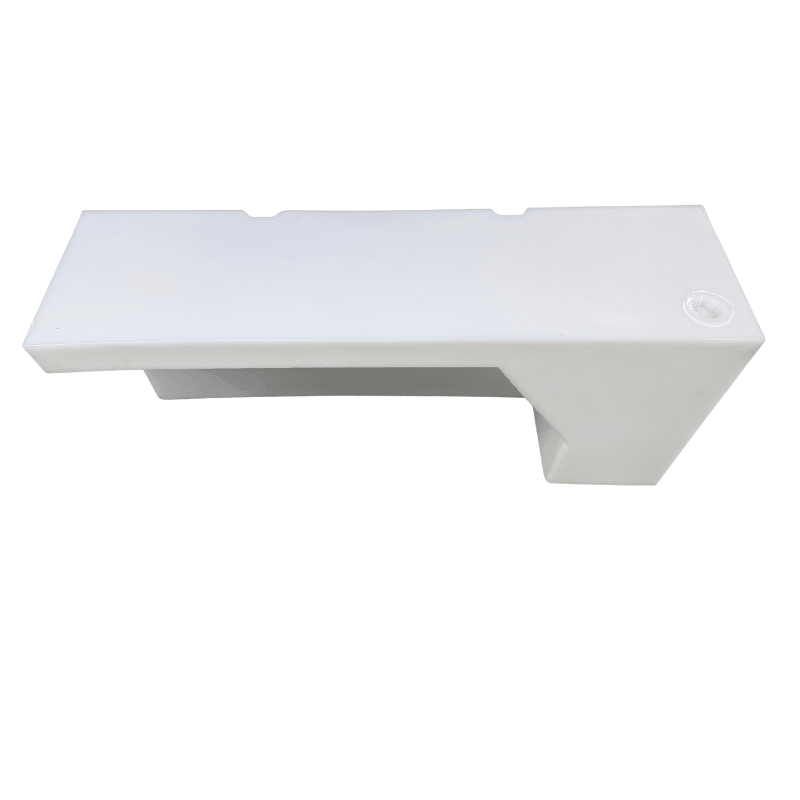

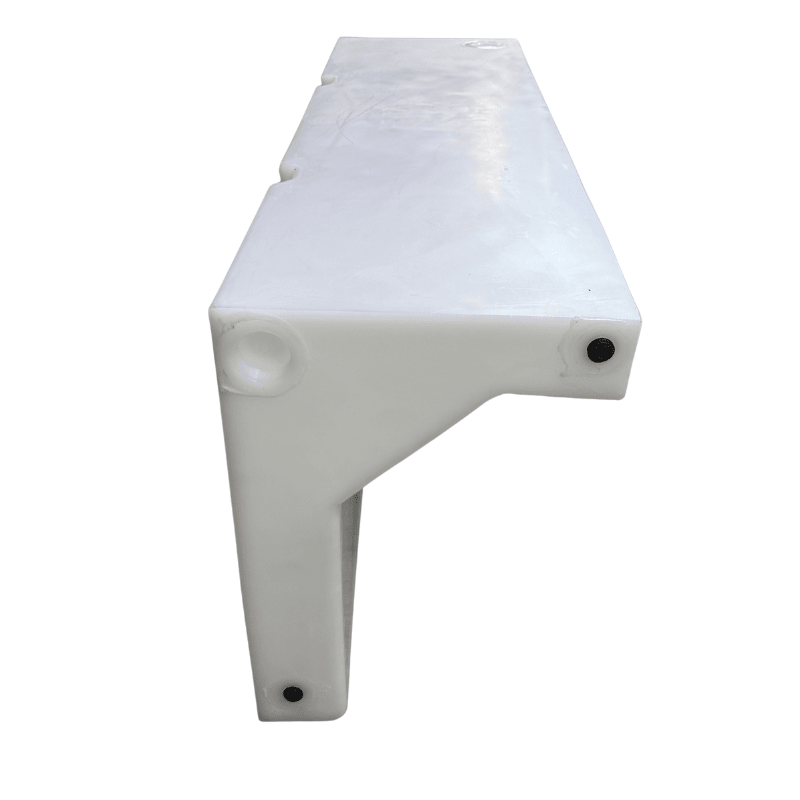

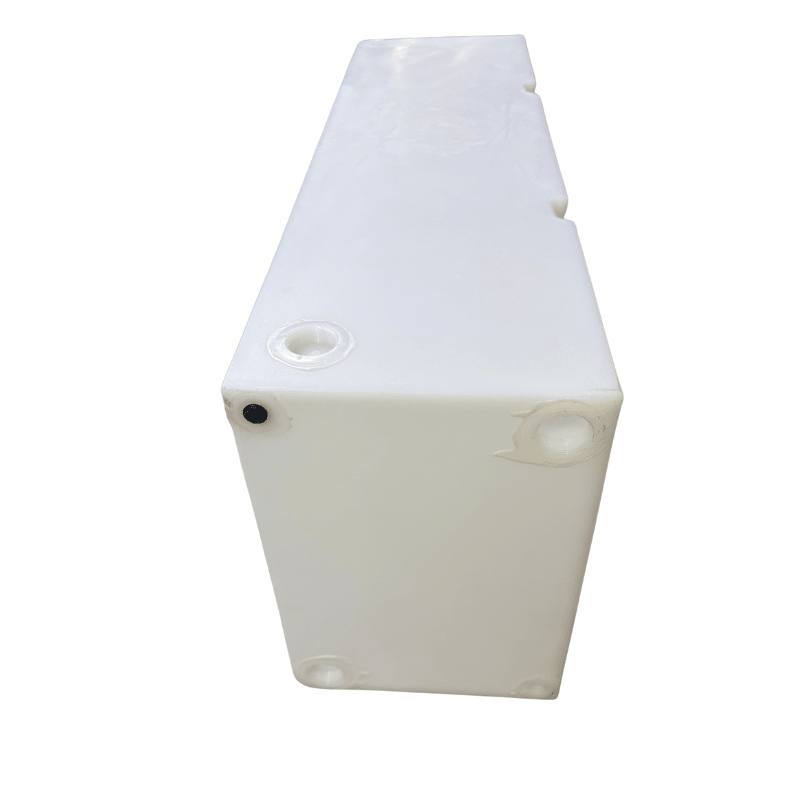

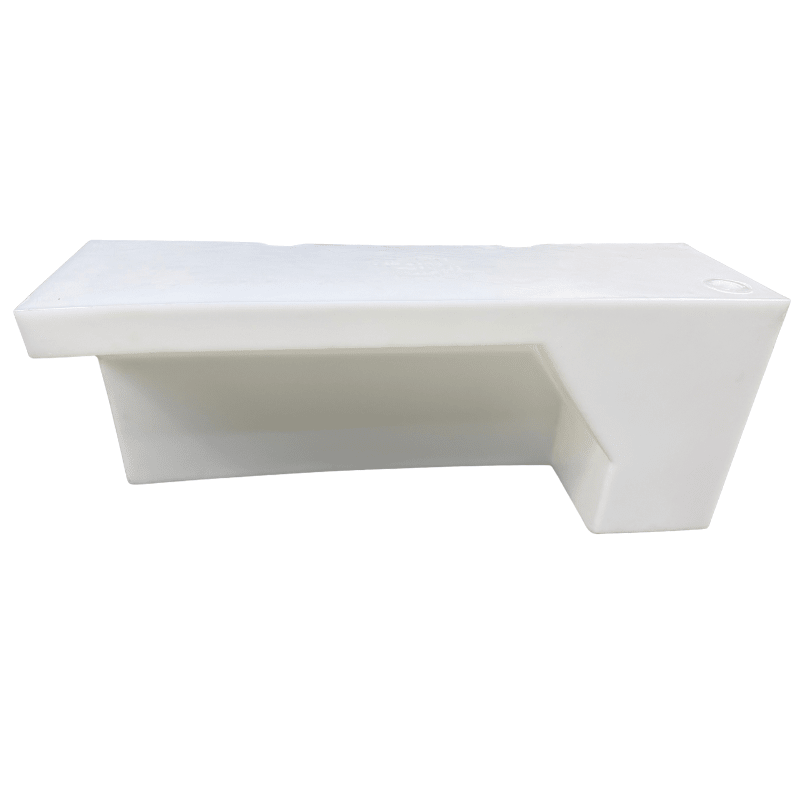

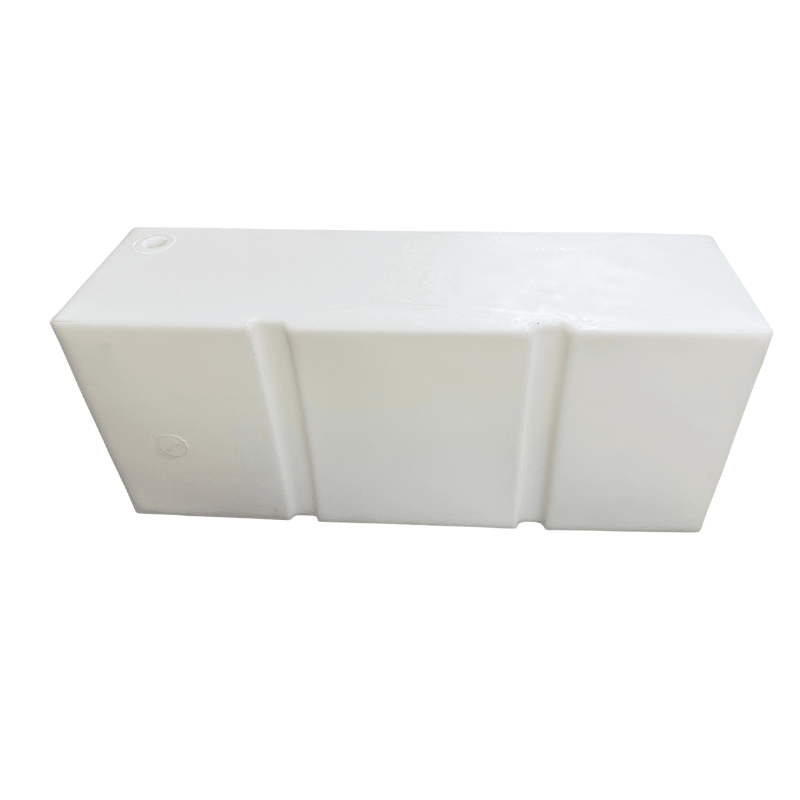

Designed for the driver side of the Ram ProMaster, the NW Conversions 28-Gallon Left Wheel Well Water Tank (PM-L-28) transforms the space around your wheel well into valuable fresh water storage. The offset design contours over the left-side wheel housing and positions the bulk of the capacity toward the rear of the van, making it ideal for van layouts featuring galley or cabinet systems on the driver side.

Offset Driver-Side Design: Contours over the left-side wheel housing to maximize interior space and accommodate driver-side cabinet or galley layouts, pushing the bulk of the volume toward the rear.

Food-Grade Construction: Molded from BPA-free, food-grade plastic, ensuring a safe fresh water supply for your off-grid travels.

Versatile Port Layout: Features multiple pre-marked and open NPT ports on the top and ends for flexible plumbing, filling, or level sensor installation.

Certified Quality: Manufactured in the USA and IAPMO TS 4 certified to meet strict quality and material safety standards.

Ram ProMaster: Optimized for a custom fit over the driver-side (left) wheel well.
Mercedes Sprinter & Ford Transit: Compatible with the driver-side wheel well, leaving a gap at the top of the well that is ideal for adding insulation or sound deadening.
Universal Fitment: Suitable for box trucks, trailers, or custom builds where physical dimensions allow.

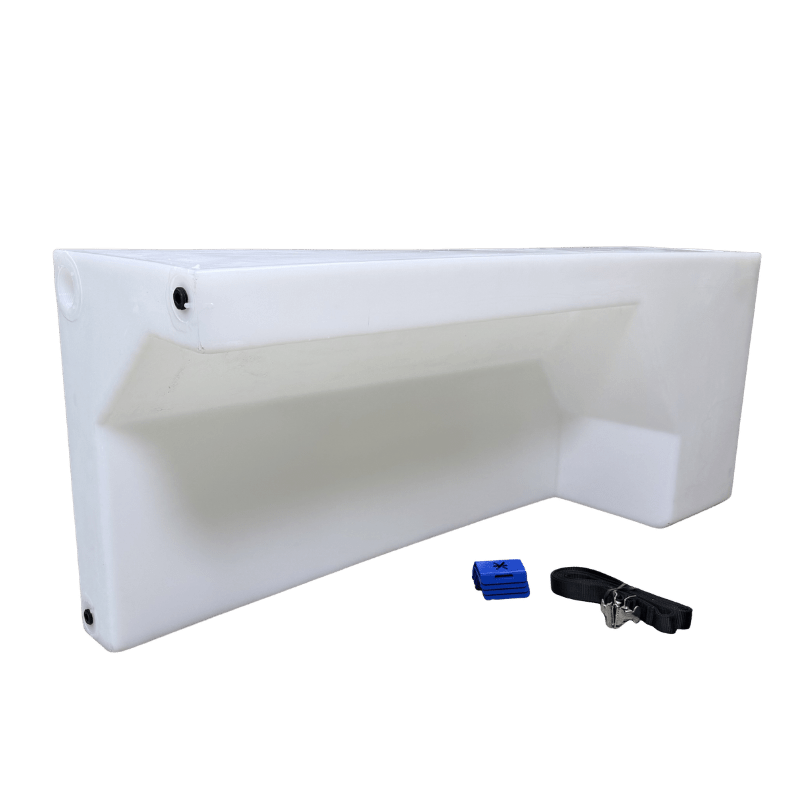

[1] 28-Gallon Left Wheel Well Water Tank

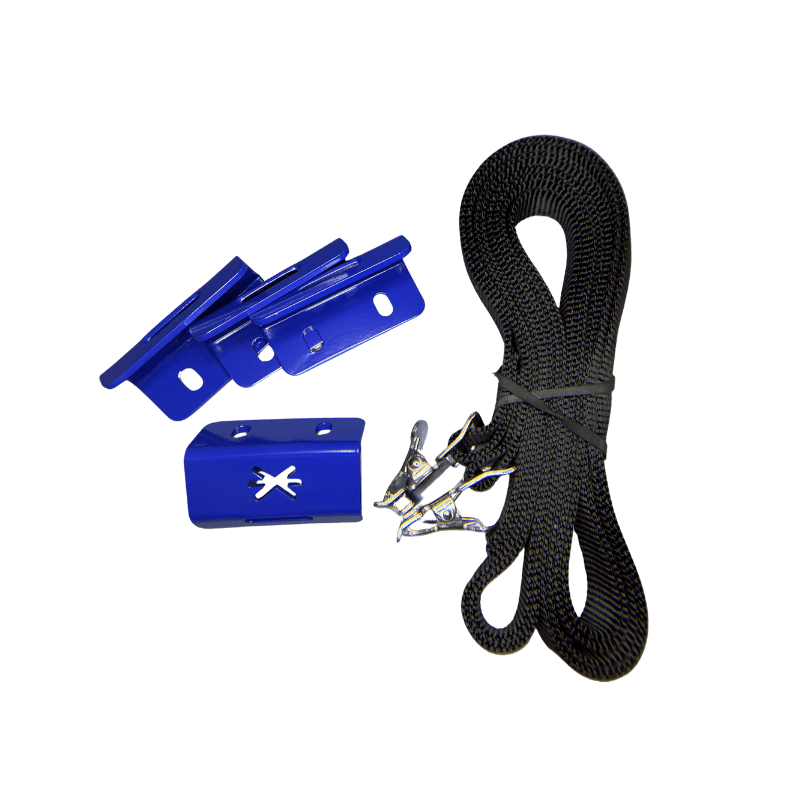

[2] Adjustable Mounting Straps

[4] Mounting Brackets

Capacity: 28 gallons
Dimensions: 48" L × 14" W × 20" H
Product Weight: 32 lbs (Empty)
Material: BPA-free, food-grade plastic
Certifications: IAPMO TS 4 Certified
Venting Required: Not designed for pressurized systems, must be vented

Plumbing Port Configuration:

Ends: (2) 1.5" NPT ports (pre-marked, drill out to use) & (2) 1/2" NPT ports (open and ready to use)
Top: (1) 1.5" NPT port for fill or level sensor (pre-marked, drill out to use)

Frequently bought together:

Important Notes & Pro Tips

Venting Requirement: This tank is designed for non-pressurized systems and must be properly vented to open air to operate safely.
Drilling Sealed Ports: The 1.5" NPT ports arrive sealed from the factory to protect tank integrity. You must drill out these pre-marked areas to open them for plumbing.
Sprinter & Transit Clearance: When installed in a Sprinter or Transit, the clearance space between the tank contour and the wheel well provides a convenient pocket for thermal or acoustic insulation.
