NW Conversions 24 Gallon Transit Spare Tire Tank (TR-ST-24)

$305.10 USD $339.00 USD

NW Conversions 24 Gallon Transit Spare Tire Tank (TR-ST-24)

GoCode

NW Conversions 24 Gallon Transit Spare Tire Tank (TR-ST-24)

$305.10 USD $339.00 USD

Utilize your undercarriage space for 24 gallons of fresh or grey water with the NW Conversions 24-Gallon Transit Spare Tire Water Tank (TR-ST-24). Purpose-built to fit into the Ford Transit's factory spare tire cavity using the supplied heavy-duty hardware, this tank provides substantial storage capacity without sacrificing an inch of interior floor space. Relocating your spare tire to a rear door mount opens up this undercarriage cavity, offering a clean, balanced solution trusted by professional van builders and DIY adventurers across North America.

Undercarriage Space Optimization: Utilizes the empty factory spare tire cavity to add substantial water storage completely outside the vehicle cabin.
Dual Fresh or Grey Utility: Sized and engineered to function reliably as either a fresh water supply or a grey water holding tank.
Food-Grade Construction: Molded from BPA-free, food-grade polyethylene, ensuring a safe fresh water supply for off-grid travels.
Certified Quality: Manufactured in the USA and certified to meet strict IAPMO TS-4, TEI, and RVIA standards.

Make & Model: Ford Transit cargo and passenger vans (Model years 2007 to present).
Placement: Undercarriage factory spare tire location.
Universal Fitment: May also fit other vehicle makes, models, or custom overland builds where physical dimensions allow; confirm measurements before ordering.

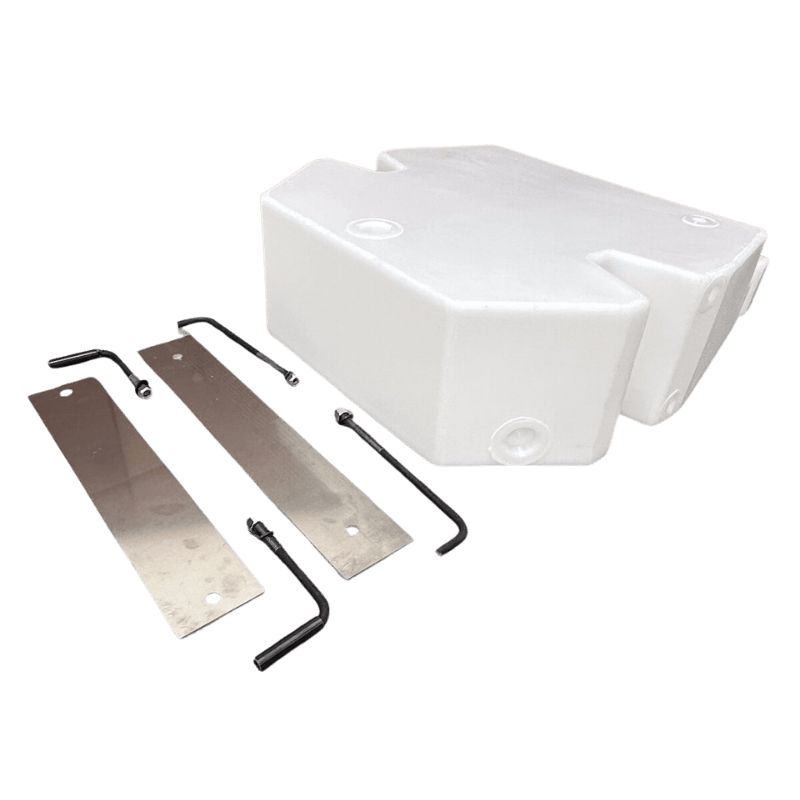

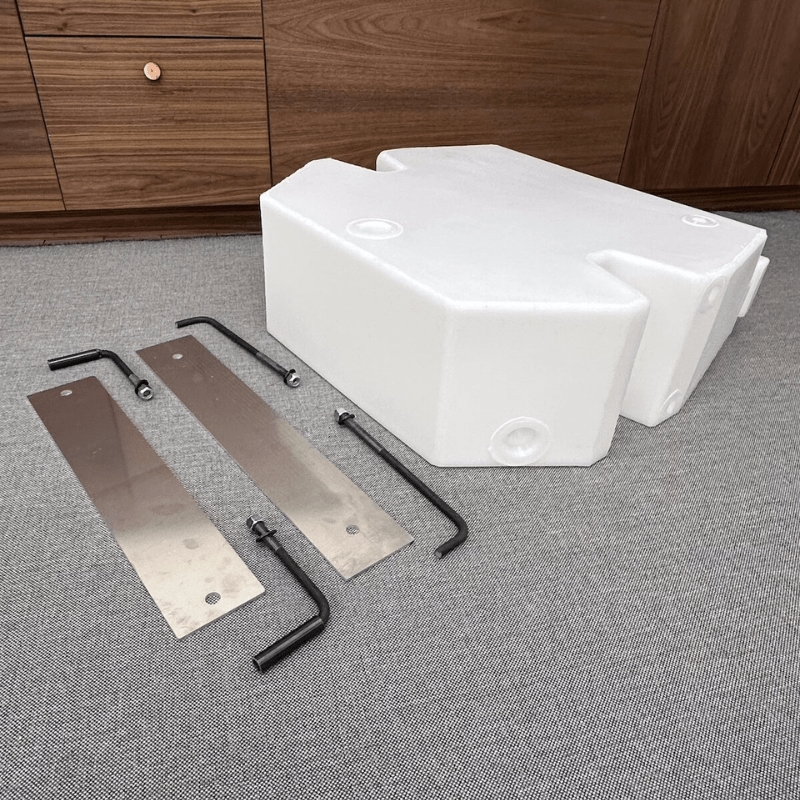

[1] 24-Gallon Transit Spare Tire Water Tank

[1] 1/2″ Mounting Hardware & Plate Kit

Capacity: 24 gallons

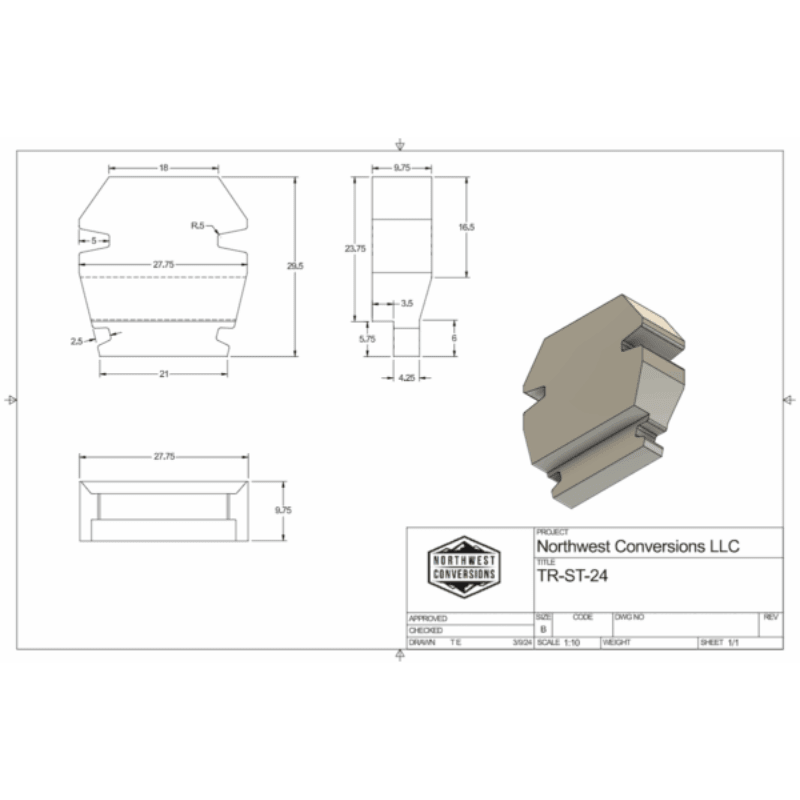

Dimensions: 30″ L × 28″ W × 9.75″ H (Approx.)
Product Weight: 34 lbs (Empty)
Material: BPA-free, food-grade polyethylene
Certifications: IAPMO TS-4 Certified / TEI Listed / RVIA Approved
Venting Required: Not designed for pressurized systems, must be vented

Plumbing Port Configuration:

Driver Side: (2) 1.5″ NPT ports & (2) 1/2″ NPT ports
Top: (1) 1.5″ NPT port & (1) 1/2″ NPT port (for float sensor or vent)

Frequently bought together:

Important Notes & Pro Tips

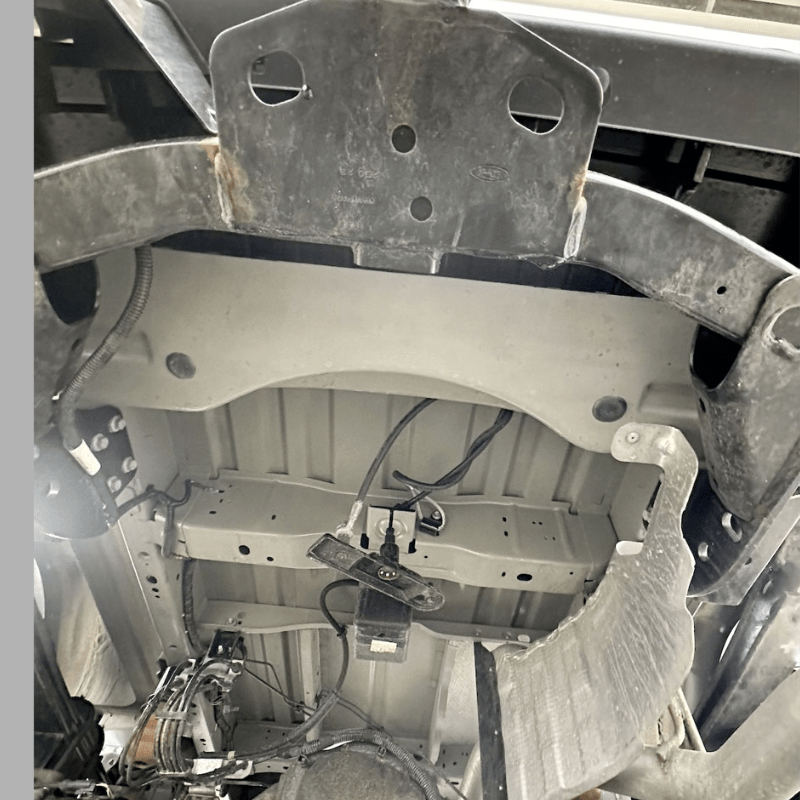

Spare Tire Relocation Required: This system requires you to relocate your factory spare tire to an alternate location, such as a rear door carrier or cargo rack, to open up the mounting bay.
Cable Mount Disassembly: Once the spare tire is removed, the factory cable mount must be slid through the slot in the metal bracket. This assembly can be completely taken out or tucked above the mount and secured safely out of the way using heavy-duty cable ties.
Venting Requirement: This tank is designed for non-pressurized systems and must be properly vented to prevent tank distortion or damage during fill and drain cycles.
