White Top Adventures Sprinter 170" EXT High Roof Strata Roof Rack

$1,250.00 USD $1,395.00 USD

White Top Adventures Sprinter 170" EXT High Roof Strata Roof Rack

Name: White Top Adventures Sprinter 170" EXT High Roof Strata Roof Rack
Brand: White Top Adventures
SKU: SPRR170J-1, SPRR170J-2,SP-RR170EXTJ
Price: 1250.00 USD
Availability: InStock

$1,250.00 USD $1,395.00 USD

Ships for free on orders over $150

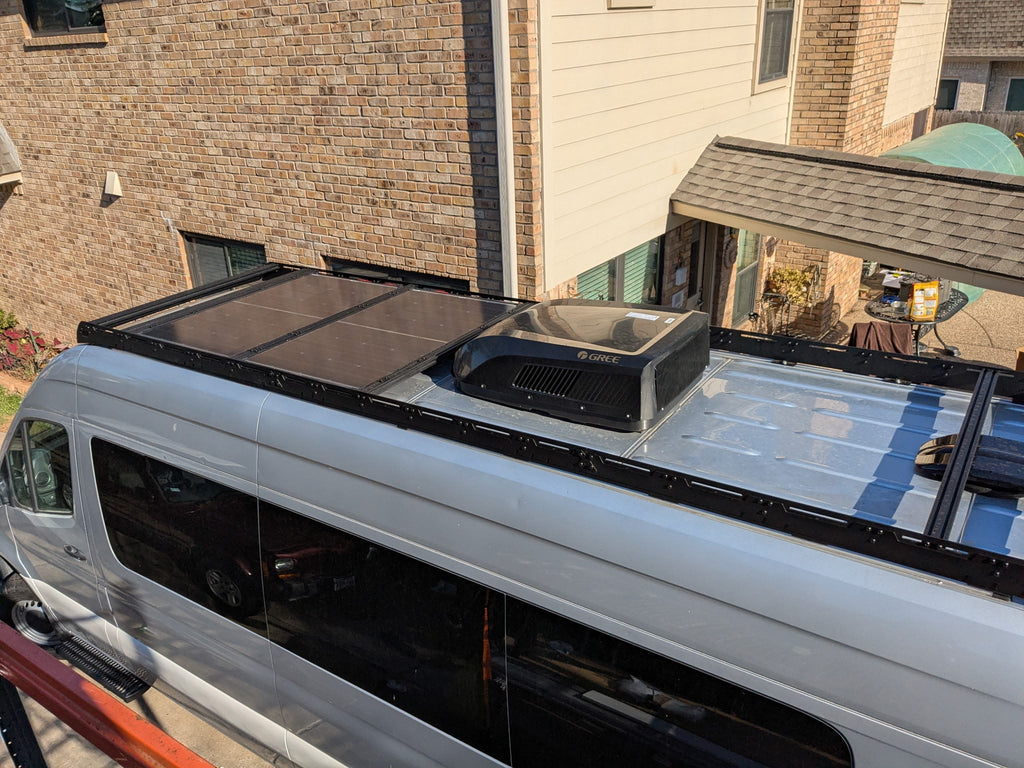

Transform your roof into a high-capacity gear platform with the White Top Adventures Strata Roof Rack for the Mercedes Sprinter 170" Extended High Roof. Built for overlanders and van lifers, this heavy-duty aluminum rack combines sleek aesthetics with extreme functionality. Featuring eight fully adjustable crossbars and an integrated outer rigidity band that doubles as a grab handle, it delivers a rock-solid platform to mount solar panels, AC units, roof vents, awnings, or a walkable deck.

Bigger, Stronger, Smarter: Lightweight all-aluminum construction delivers maximum payload capacity and strength for heavy-duty loads.

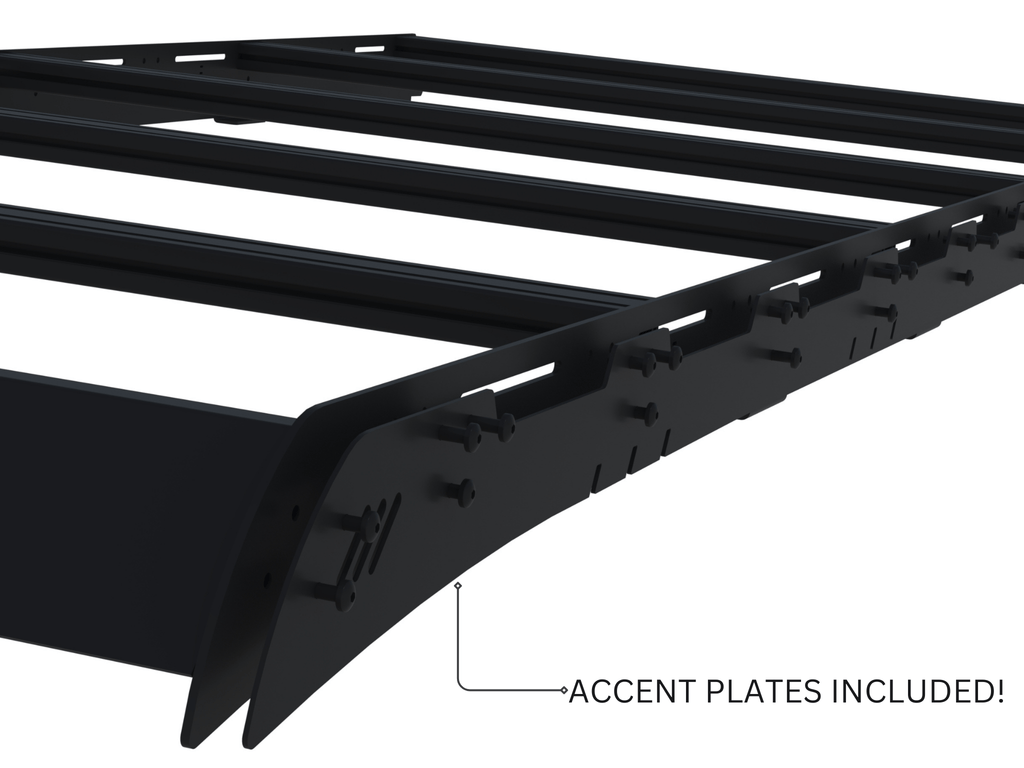

Customizable Outer Rail Mounts: The double-sided outer rail mounts provide incredible frame rigidity and allow you to personalize the outer accent plates with 3M vinyl wraps or custom paint to match your van's color scheme.
8 Adjustable Crossbars: Includes eight anodized aluminum crossbars, giving you total freedom to bolt on rooftop gear, walkable deck panels, or custom mounting brackets exactly where you need them.
Integrated Front Fairing: The aerodynamic aluminum wind fairing reduces wind resistance and drag. It is light bar compatible, easily fitting most aftermarket LED light bars up to 51.5" (optimized for Baja Designs XL Linkable).
Engineered for the Elements: All hardware is stainless steel and electro-coated for superior weather resistance and long-lasting durability.

Specifically engineered for Mercedes-Benz Sprinter 170" EXT High Roof
(Not compatible with standard 170" or 144" models)

[1] Strata Roof Rack Frame

[8] Adjustable Aluminum Crossbars

[1] Complete Mounting Hardware & Weatherproof Roof Bracket Kit

Material: Heavy-Duty All-Aluminum Construction
Hardware: Electro-Coated Stainless Steel
Crossbar Count: 8 Fully Adjustable 10-Series 80/20 Crossbars

Frequently bought together:

Video Installation Guide

Important Notes & Pro Tips

Factory Roof Tracks Required: This rack mounts securely to your Sprinter's roof using the included M10 sliders that slide directly into your factory roof tracks.
Configuring the Crossbars: The rack package includes a total of eight crossbars. One is specifically dedicated to the front fairing assembly, while the remaining seven can be positioned flexibly according to your specific needs or chosen layout.
