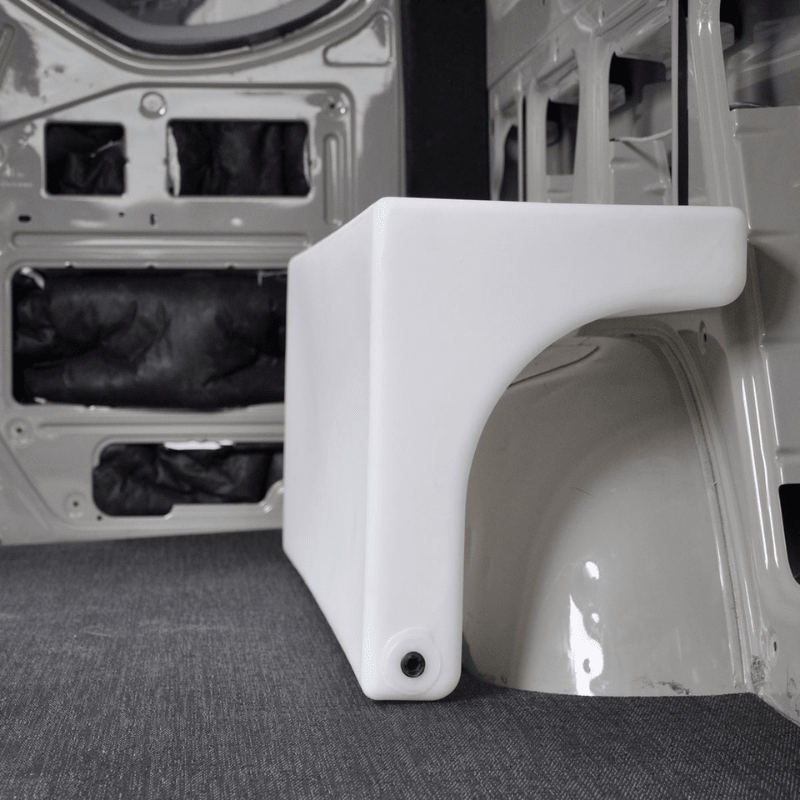

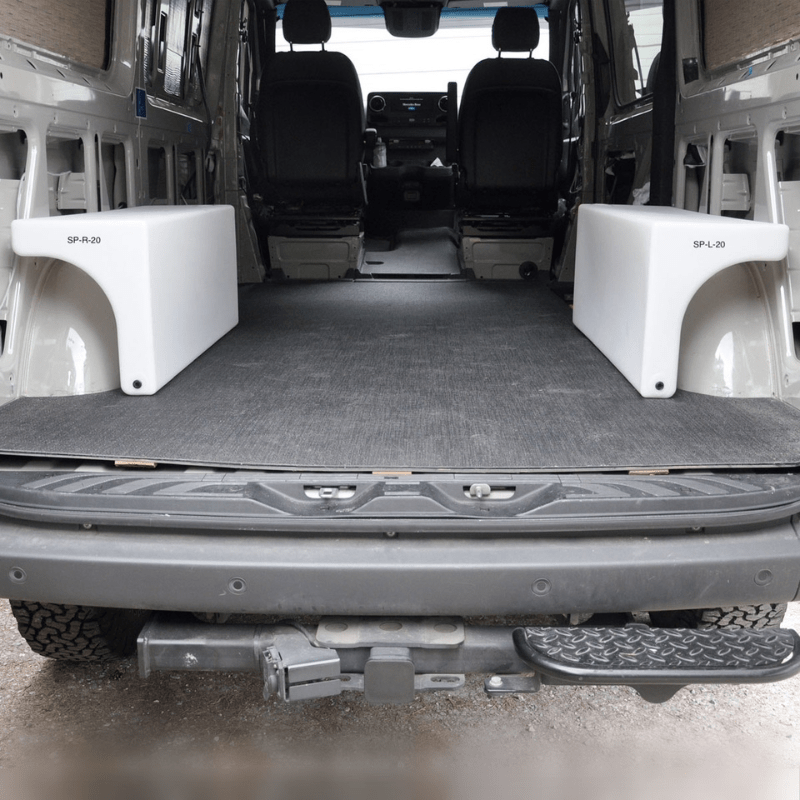

Make use of the space your wheel well would otherwise waste with the NW Conversions 20-Gallon Left Wheel Well Water Tank (SP-L-20). This tank features an offset design that sits over the Mercedes Sprinter wheel well, keeping your interior floor plan open while adding serious fresh water capacity to your van build.
Key Features

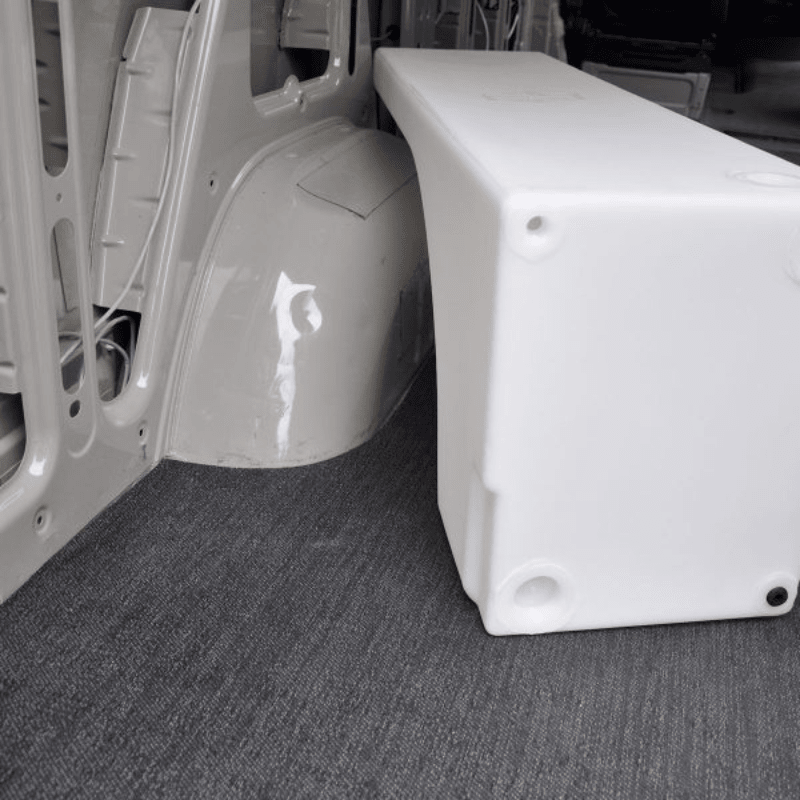

Space-Saving Offset Design: Sits offset over the wheel well to maximize floor plan flexibility, positioning the bulk of the tank either toward the front or rear depending on which side it is installed.

Food-Grade Construction: Molded from BPA-free, food-grade plastic, ensuring a safe fresh water supply for your off-grid travels.

Versatile Port Placement: Features multiple pre-marked NPT ports on the top, end, and bottom for flexible plumbing configurations, drainage, and water level sensor integration.

Certified Quality: Manufactured in the USA and IAPMO TS 4 certified to meet strict quality and material safety standards.

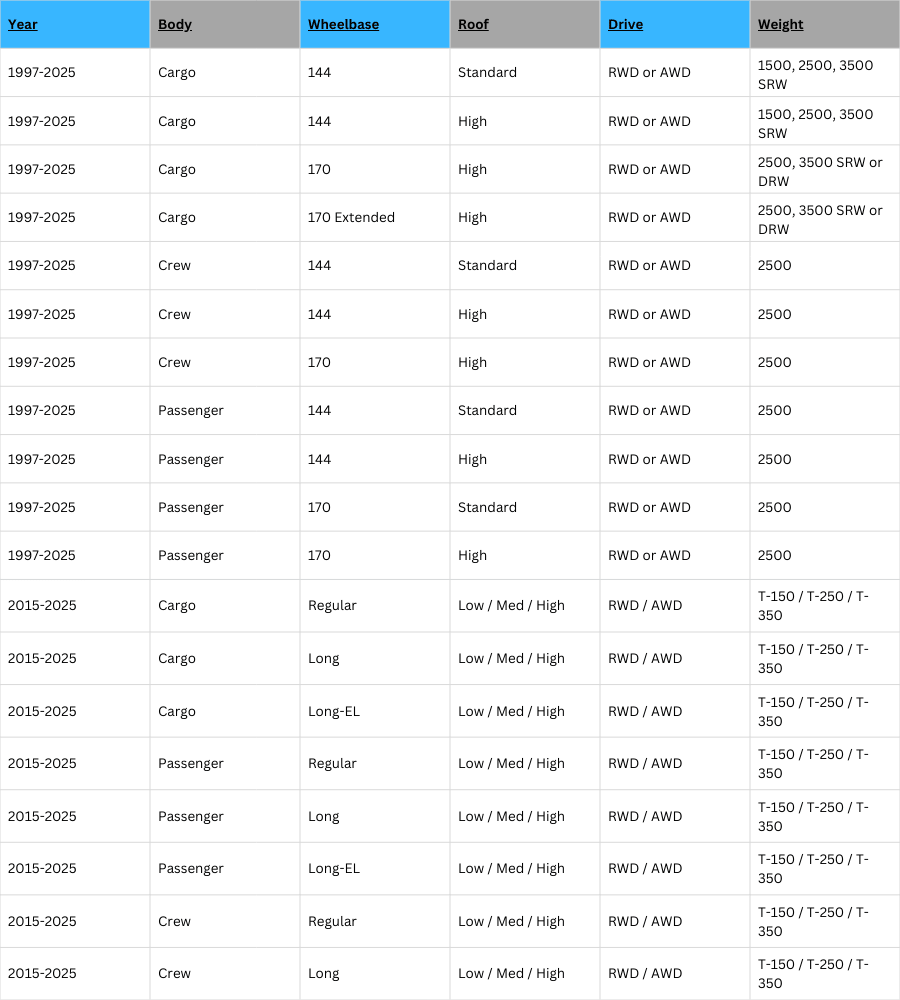

Van Compatibility
  • Mercedes-Benz Sprinter: Direct fit for Sprinter 2500 models (also fits older Sprinter T1N models).

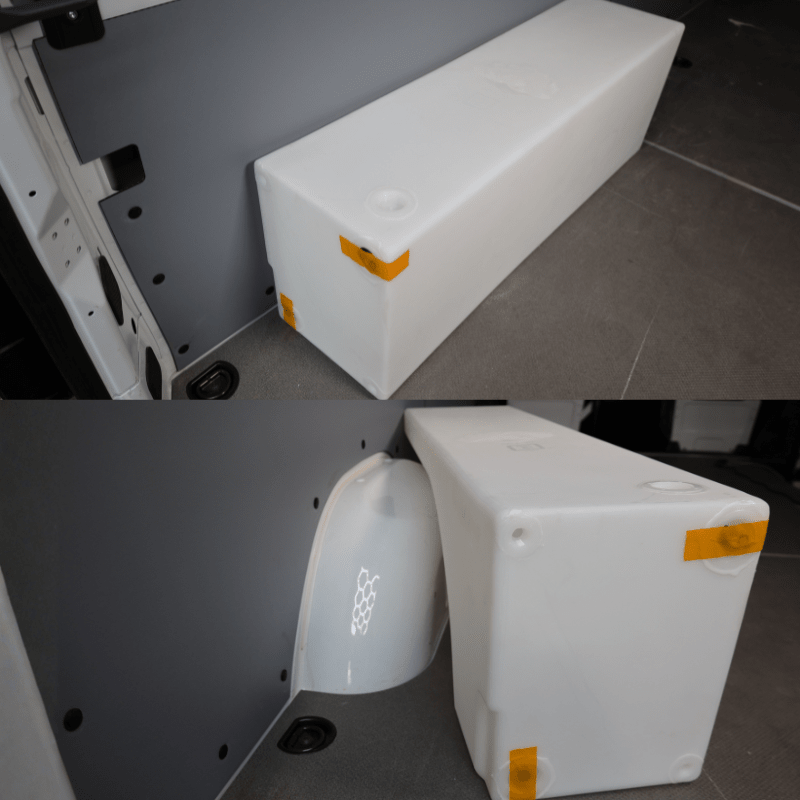

  • Ford Transit: Fits single-rear-wheel (SRW) models, leaving extra clearance around the wheel well for adding sound deadening or thermal insulation.
  • Ram ProMaster: Compatible, but requires building a 3.5" platform elevation underneath the tank to clear the larger factory ProMaster wheel wells.

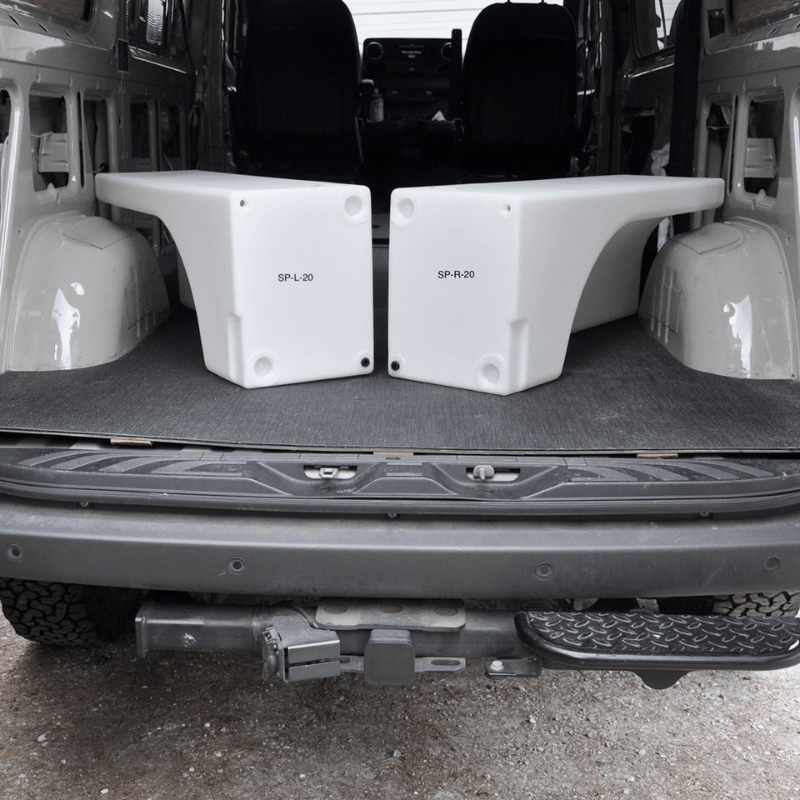

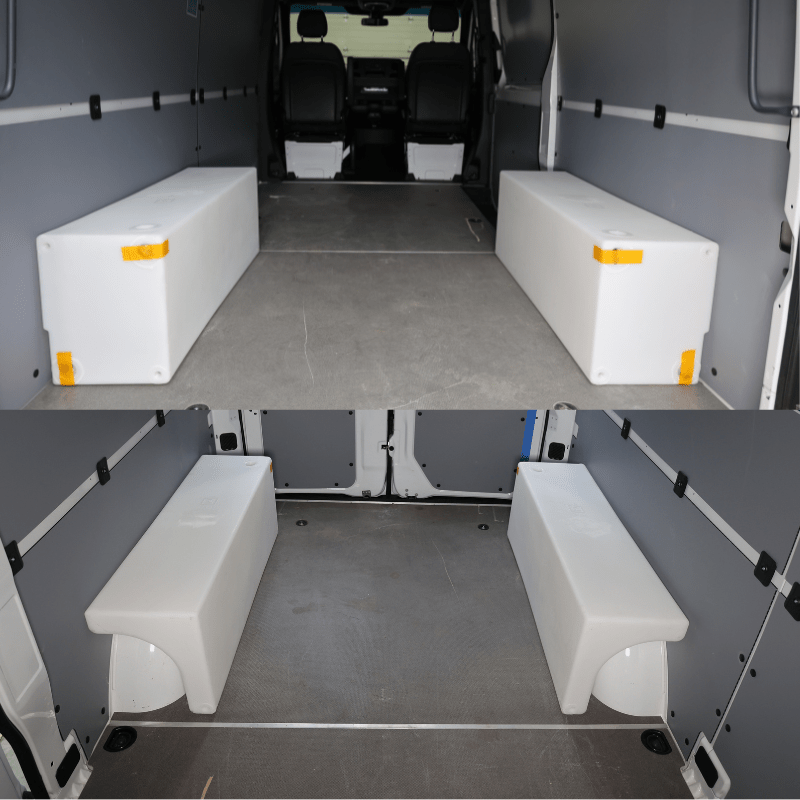

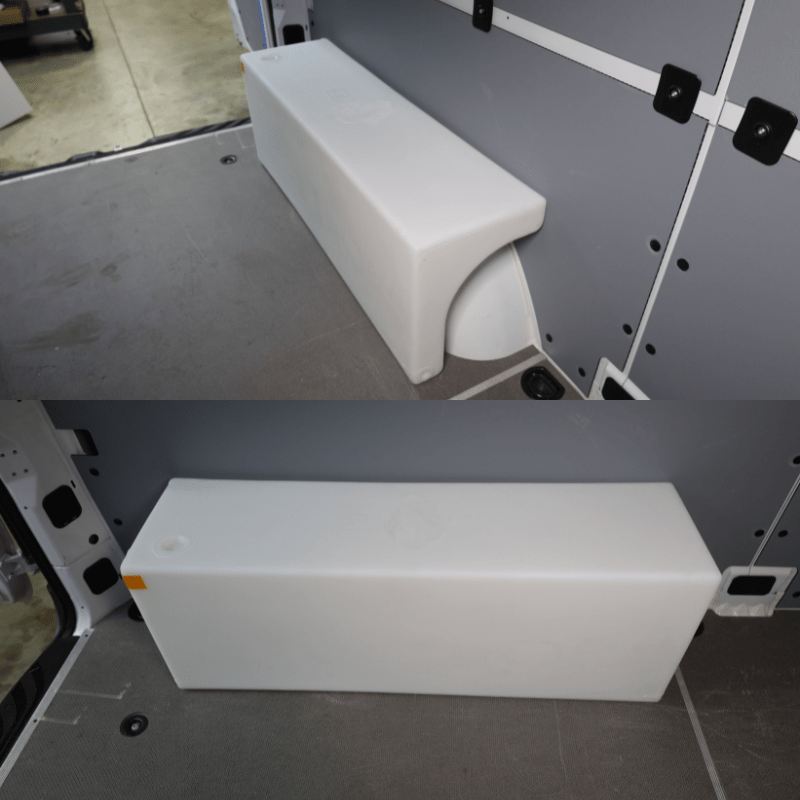

  • Placement Orientation: Can be placed on either the driver or passenger side. On the driver side, the tank body sits to the rear of the wheel well. On the passenger side, the tank body sits to the front of the wheel well.

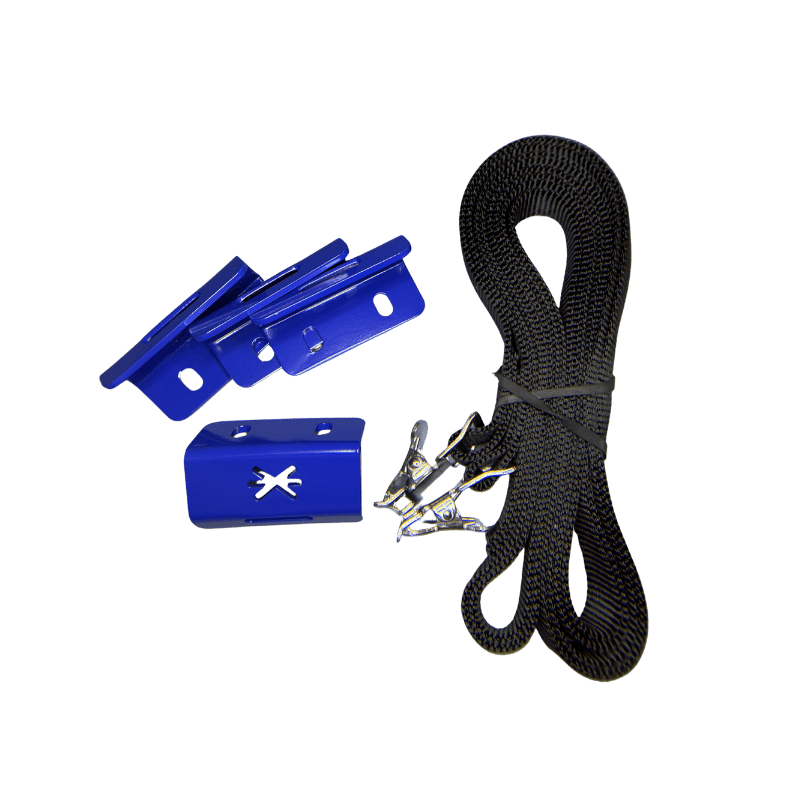

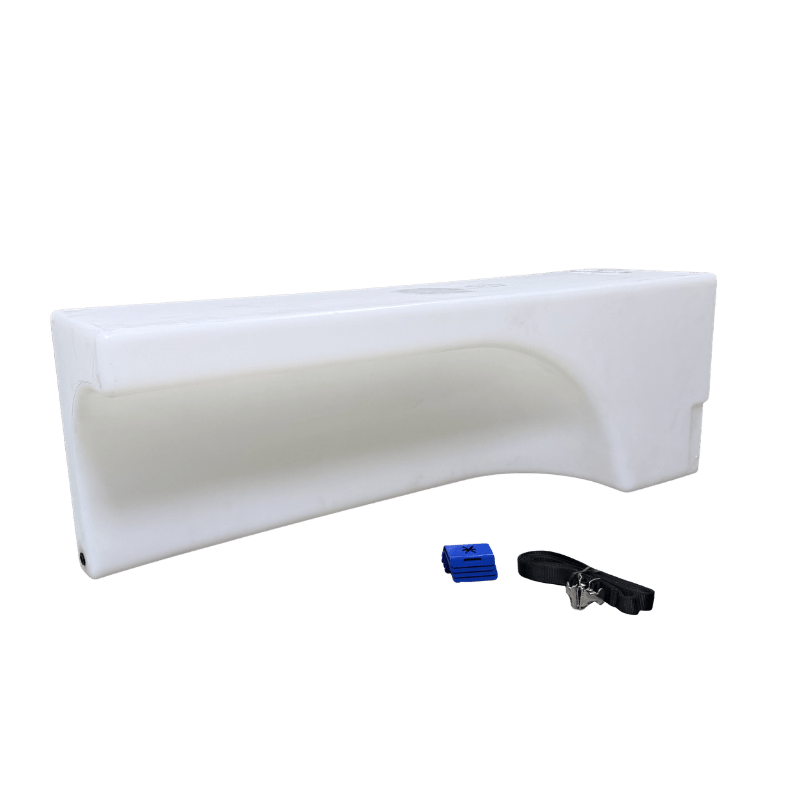

What's Included

[1] 20-Gallon Left Wheel Well Water Tank

[2] Adjustable Mounting Straps

[4] Mounting Brackets

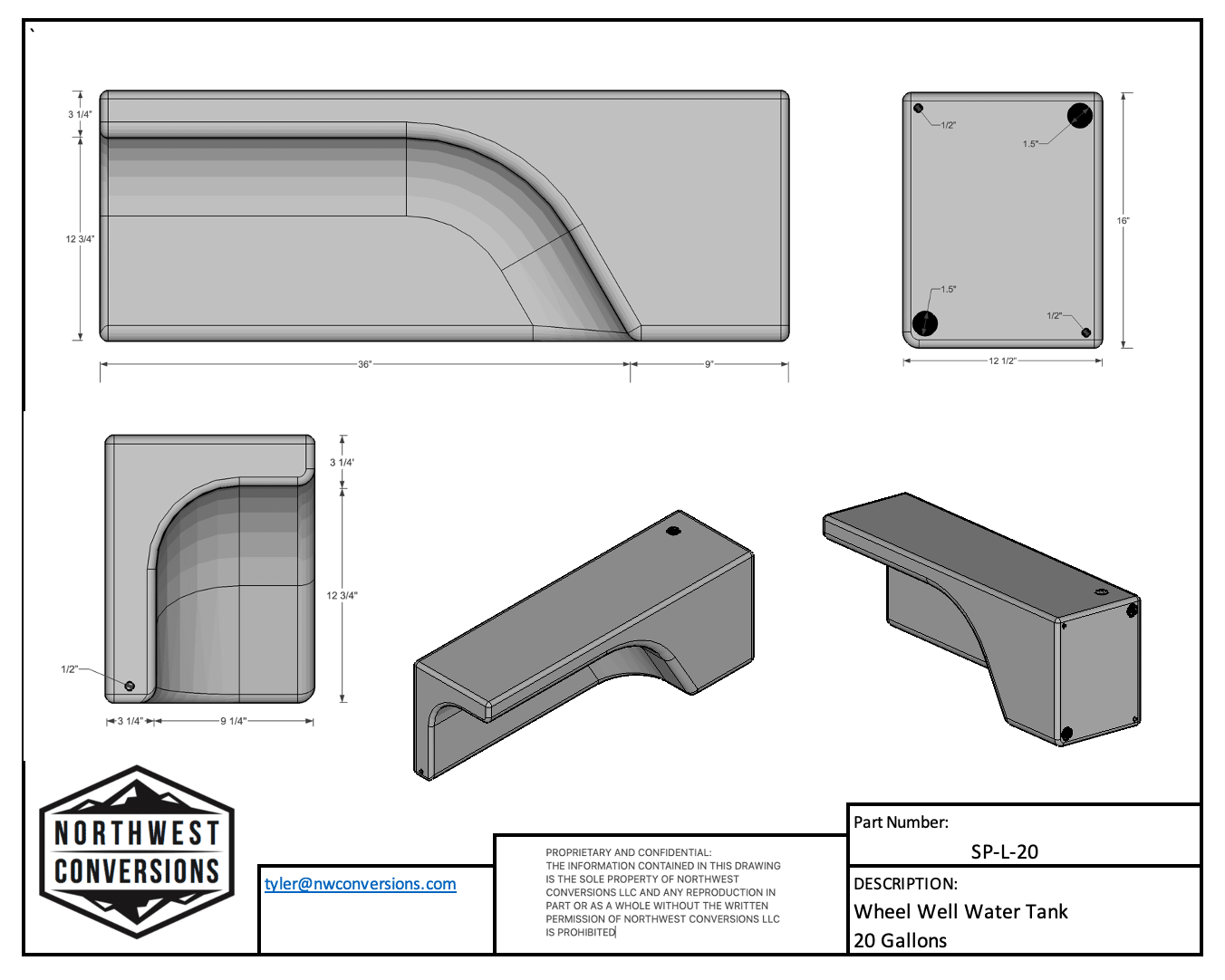

Technical Specifications
  • Capacity: 20 gallons
  • Dimensions: 45" L × 12.5" W × 16" H
  • Product Weight: 22 lbs (Empty)
  • Material: BPA-free, food-grade plastic
  • Certifications: IAPMO TS 4 Certified
  • Venting Required: Not designed for pressurized systems, must be vented

Plumbing Port Configuration:

  • Rectangular End: (2) 1.5" NPT ports (pre-marked, drill out to use) & (2) 1/2" NPT ports
  • Open End (Bottom): (1) 1/2" NPT port
  • Top: (1) 1.5" NPT port for fill or level sensor (pre-marked, drill out to use)

Frequently bought together:

Important Notes & Pro Tips

Venting Required: This tank is not designed for pressurized systems and must be properly vented to operate safely.

Drilling Sealed Ports: The 1.5" NPT ports arrive sealed from the factory to protect the tank's integrity. You must drill out the pre-marked areas to open them for plumbing.

ProMaster Lift: If installing in a Ram ProMaster, plan to build a 3.5" riser base to ensure the tank clears the wider wheel well housing cleanly.
