NW Conversions 25-Gallon Transit Wheel Well Water Tank - Center (TR-C-24)

NW Conversions 25-Gallon Transit Wheel Well Water Tank - Center (TR-C-24)

Sale price  $269.10 USD Regular price  $299.00 USD
Skip to product information

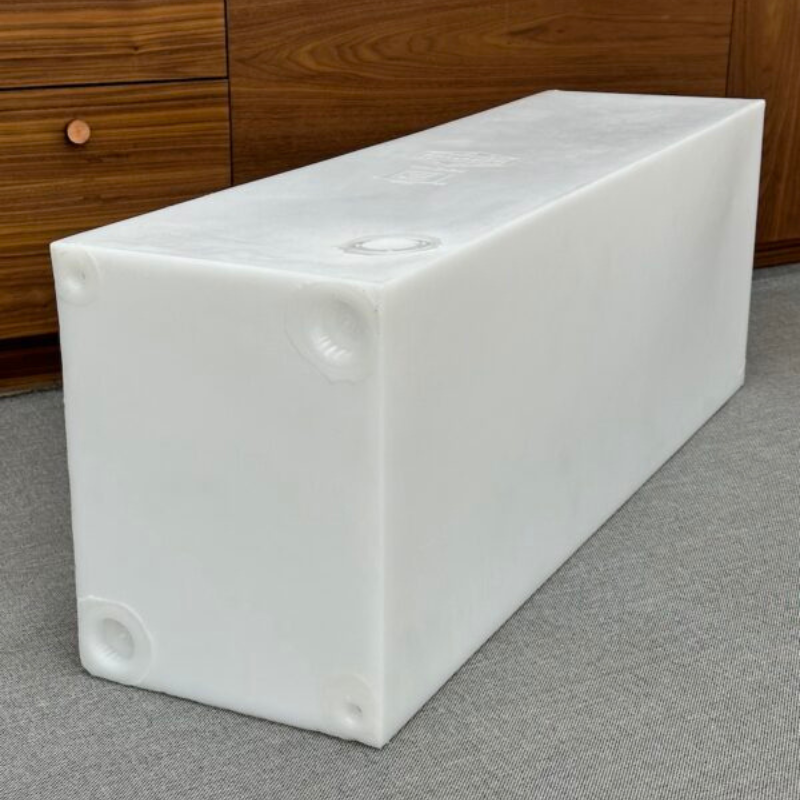

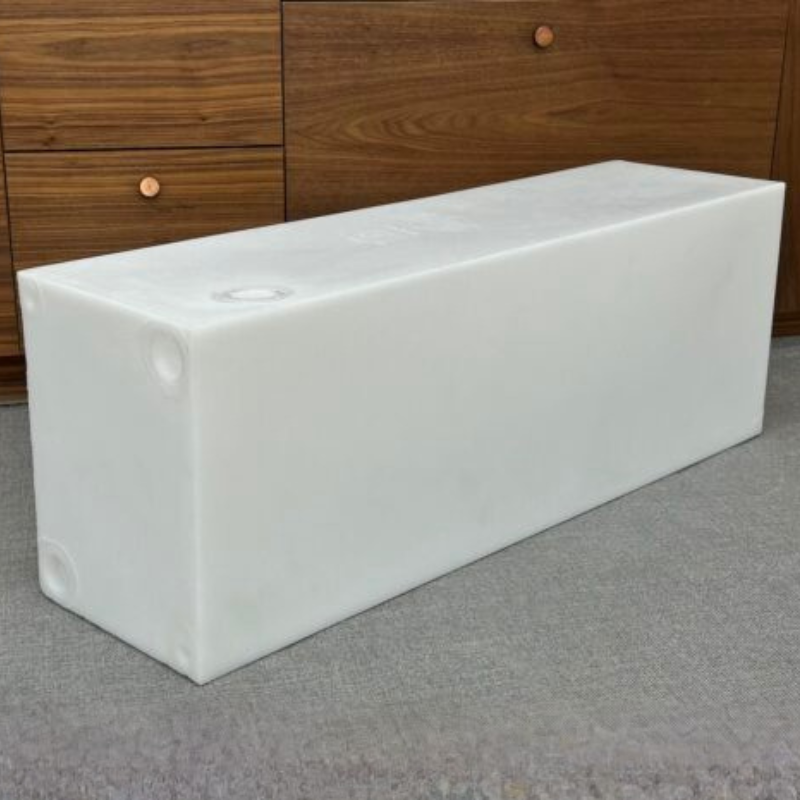

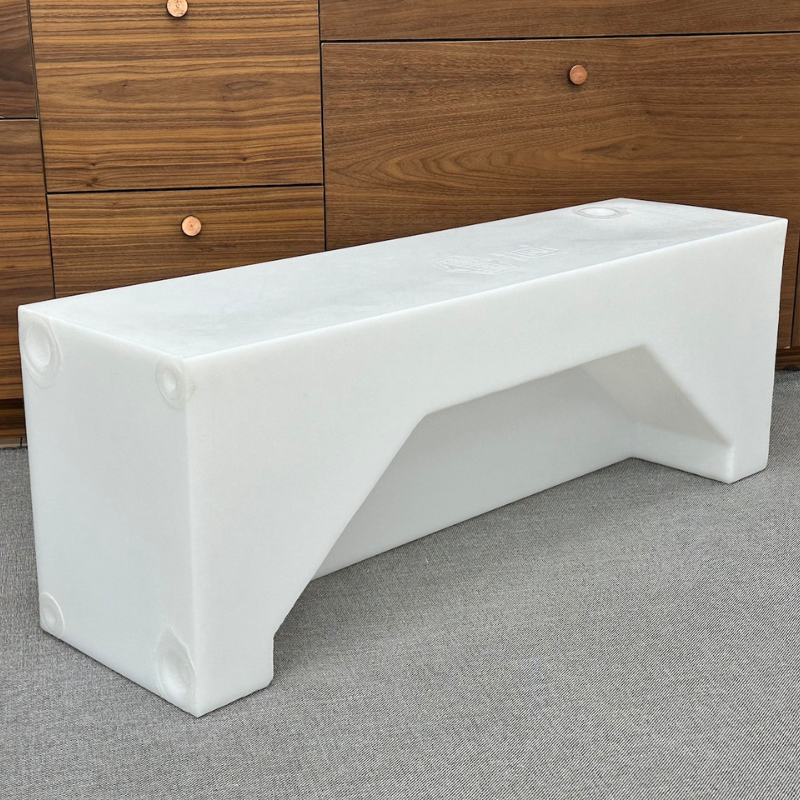

NW Conversions 25-Gallon Transit Wheel Well Water Tank - Center (TR-C-24)

GoCode

NW Conversions 25-Gallon Transit Wheel Well Water Tank - Center (TR-C-24)

Sale price  $269.10 USD Regular price  $299.00 USD

        Designed for the Ford Transit, the NW Conversions 25-Gallon Center Wheel Well Water Tank (TR-C-24) transforms the space around your wheel well into valuable fresh water storage. It sits centered over the wheel well, keeping your floor plan open while adding serious water capacity for your van build.

        Key Features
        • Space-Saving Center Design: Sits centered directly over the wheel well to optimize internal layout space and maintain an open garage or living area.
        • Food-Grade Construction: Molded from BPA-free, food-grade polyethylene, ensuring a safe fresh water supply for your off-grid travels.
        • Versatile Port Layout: Features multiple pre-marked NPT ports on the top and ends for flexible plumbing, filling, or level sensor installation.
        • Certified Quality: Manufactured in the USA and IAPMO TS 4 certified to meet strict quality and material safety standards.
        Van Compatibility
        • Make & Model: Ford Transit cargo and passenger vans.
        • Placement Versatility: Symmetrical footprint allows the tank to be placed on either the driver side or passenger side of the vehicle.
        What's Included

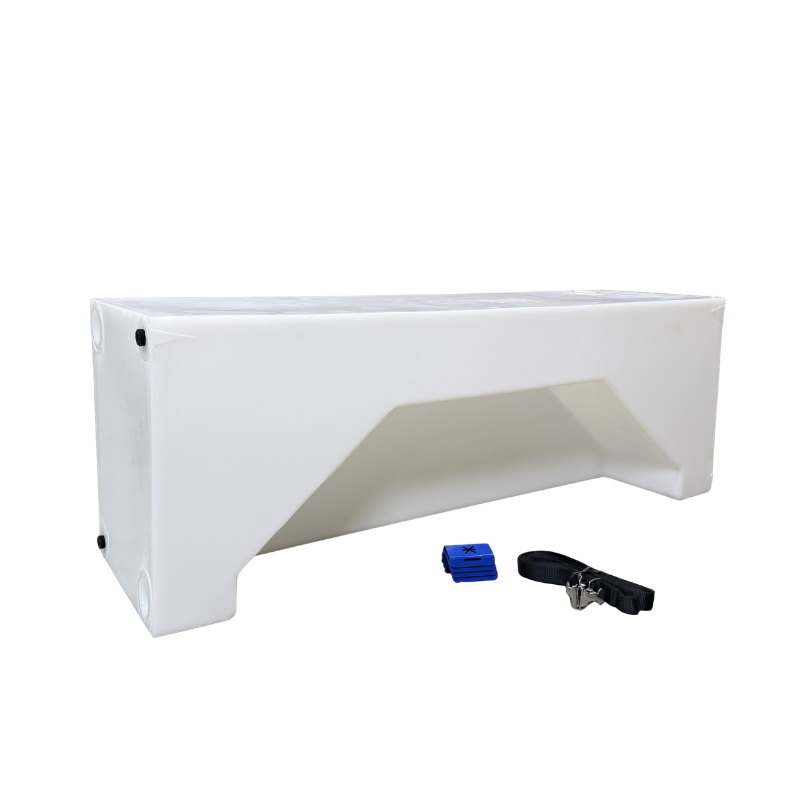

        [1] 25-Gallon Center Wheel Well Water Tank

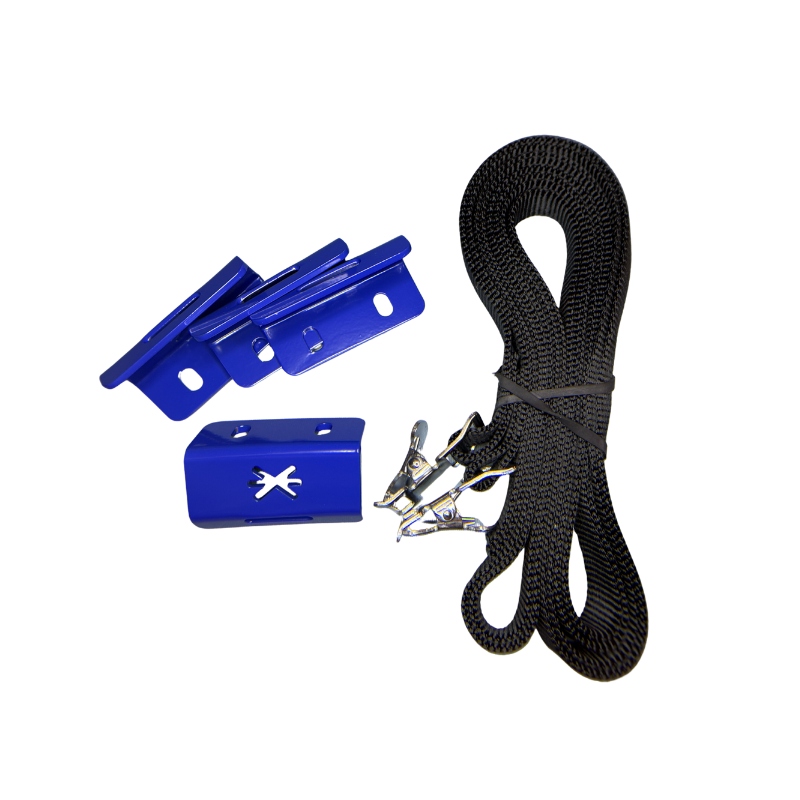

        [2] Adjustable Mounting Straps

        [4] Mounting Brackets

        Technical Specifications
        • Capacity: 25 gallons

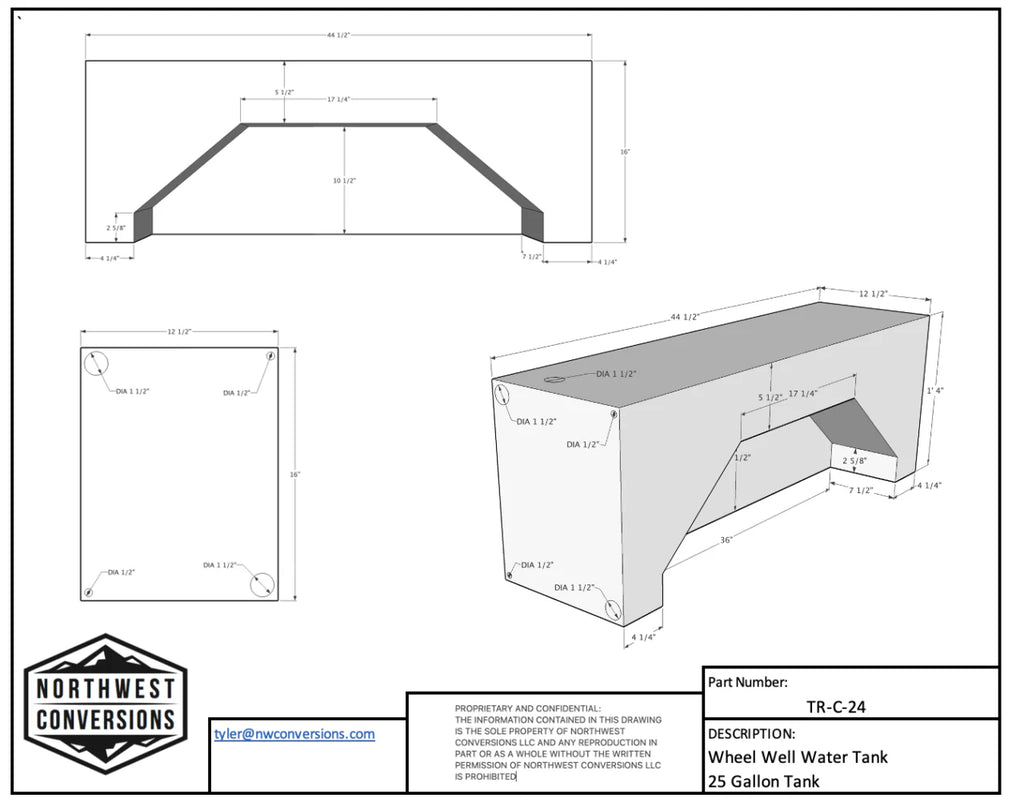

        • Dimensions: 44.5" L × 12.5" W × 16" H
        • Product Weight: 28 lbs (Empty)
        • Material: BPA-free, food-grade polyethylene
        • Certifications: IAPMO TS 4 Certified
        • Venting Required: Not designed for pressurized systems, must be vented

        Plumbing Port Configuration:

        • Ends: (2) 1.5" NPT ports (pre-marked, drill out to use) & (2) 1/2" NPT ports
        • Top: (1) 1.5" NPT port for fill or level sensor (pre-marked, drill out to use)

        Frequently bought together:

        Important Notes & Pro Tips

        • Venting Requirement: This tank is designed for non-pressurized systems and must be properly vented to open air to operate safely.
        • Drilling Sealed Ports: The 1.5" NPT ports arrive sealed from the factory to protect tank integrity. You must drill out these pre-marked areas to open them for plumbing
