NW Conversions 33-Gallon Sprinter Wheel Well Water Tank - Right (SP-R-33)

$299.00 USD
Skip to product information
NW Conversions 33-Gallon Sprinter Wheel Well Water Tank - Right (SP-R-33) - Out There Vans
  • NW Conversions 33-Gallon Sprinter Wheel Well Water Tank - Right (SP-R-33) - Out There Vans
  • NW Conversions 33-Gallon Sprinter Wheel Well Water Tank - Right (SP-R-33) - Out There Vans
  • NW Conversions 33-Gallon Sprinter Wheel Well Water Tank - Right (SP-R-33) - Out There Vans
  • NW Conversions 33-Gallon Sprinter Wheel Well Water Tank - Right (SP-R-33) - Out There Vans
  • NW Conversions 33-Gallon Sprinter Wheel Well Water Tank - Right (SP-R-33) - Out There Vans
  • NW Conversions 33-Gallon Sprinter Wheel Well Water Tank - Right (SP-R-33) - Out There Vans
  • NW Conversions 33-Gallon Sprinter Wheel Well Water Tank - Right (SP-R-33)
NW Conversions 33-Gallon Sprinter Wheel Well Water Tank - Right (SP-R-33)

NW Conversions 33-Gallon Sprinter Wheel Well Water Tank - Right (SP-R-33)

$299.00 USD

Shipping Calculated at Checkout

Calculated Shipping

This item ships directly from the manufacturer and does not qualify for free shipping. Shipping rates vary based on destination; shipping rate will be calculated at checkout.

Orders typically ship within 2-3 business days. Once shipped, transit time is typically 4-5 business days. Orders often ship in multiple packages. The shipment tracking information you recieve will include tracking for each package in the shipment.

What is the return policy?

Returns are accepted within 30 days from ship date at the customer’s expense. Item must be in original unused condition to be eligible for return. Please review our Return Policy for more information.

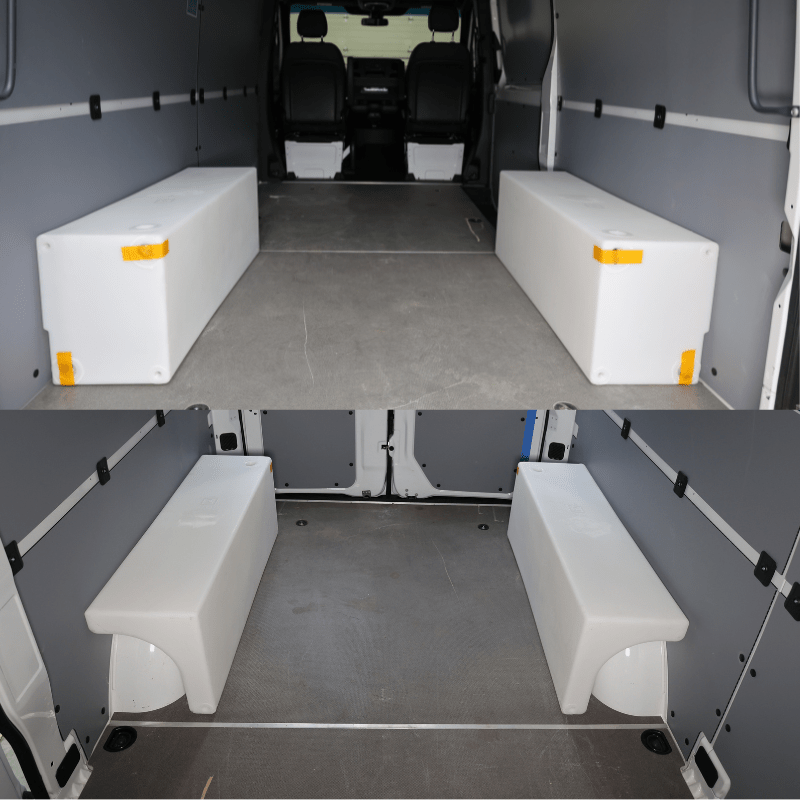

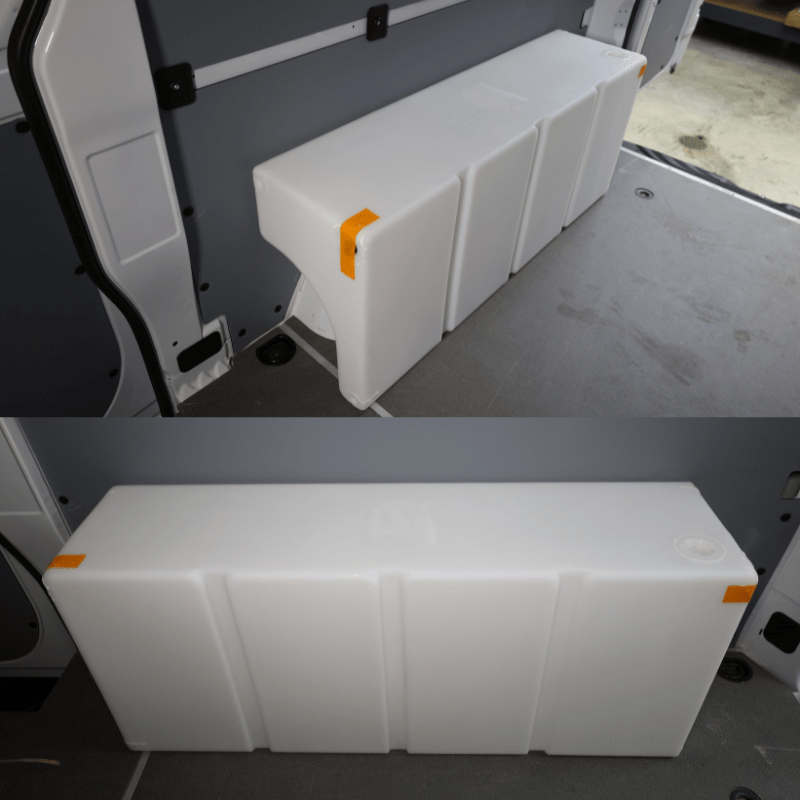

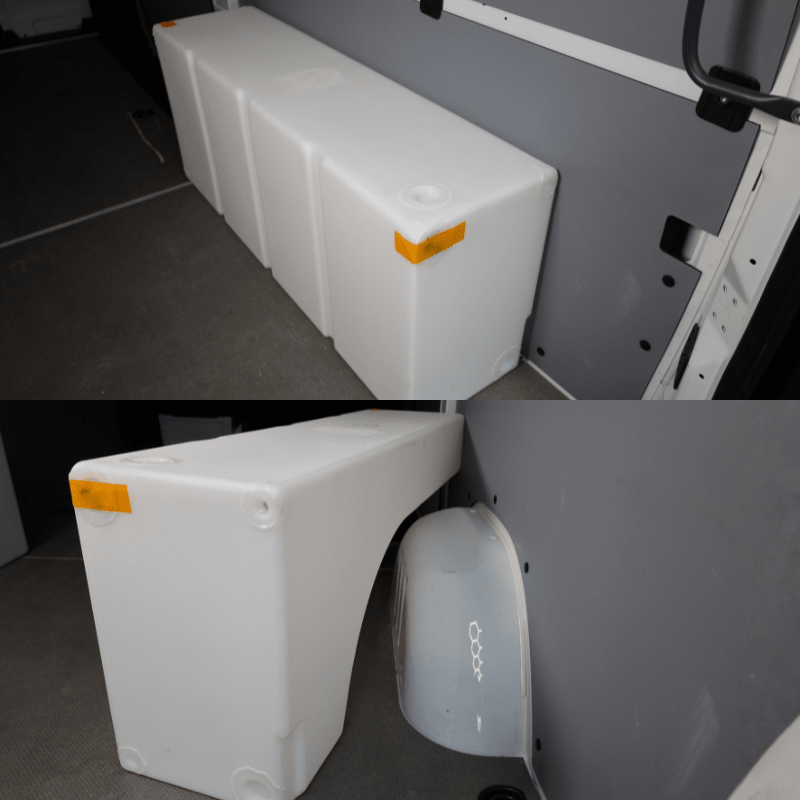

Make use of the space your wheel well would otherwise waste with the NW Conversions 33-Gallon Right Wheel Well Water Tank (SP-R-33). This tank features an offset design that sits over the Mercedes Sprinter wheel well, keeping your interior floor plan open while adding serious fresh water capacity to your van build.
Key Features
  • Space-Saving Offset Design: Sits offset over the wheel well to maximize layout flexibility, positioning the bulk of the tank either toward the front or rear depending on which side it is installed.
  • Food-Grade Construction: Molded from BPA-free, food-grade plastic, ensuring a safe fresh water supply for your off-grid travels.
  • Highly Adaptable Port Layout: Features an expansive array of open and pre-marked NPT ports on the top and both ends for maximum plumbing, filling, or level sensor flexibility.
  • Certified Quality: Manufactured in the USA and IAPMO TS 4 certified to meet strict quality and material safety standards.
Van Compatibility
  • Mercedes-Benz Sprinter: Direct fit for all Sprinter models from 1997 to present, excluding dually rear wheel models.
  • Ford Transit (Single Rear Wheel): Fits securely, leaving a slight gap around the wheel well that is ideal for adding insulation or sound deadening.
  • Ram ProMaster: Fits but requires a 3.5" platform elevation to properly clear the ProMaster's larger factory wheel housing.
  • Placement Orientation: Can be placed on either the driver or passenger side of the vehicle. On the driver side, the tank body sits to the front of the wheel well. On the passenger side, the tank body sits to the rear of the wheel well.

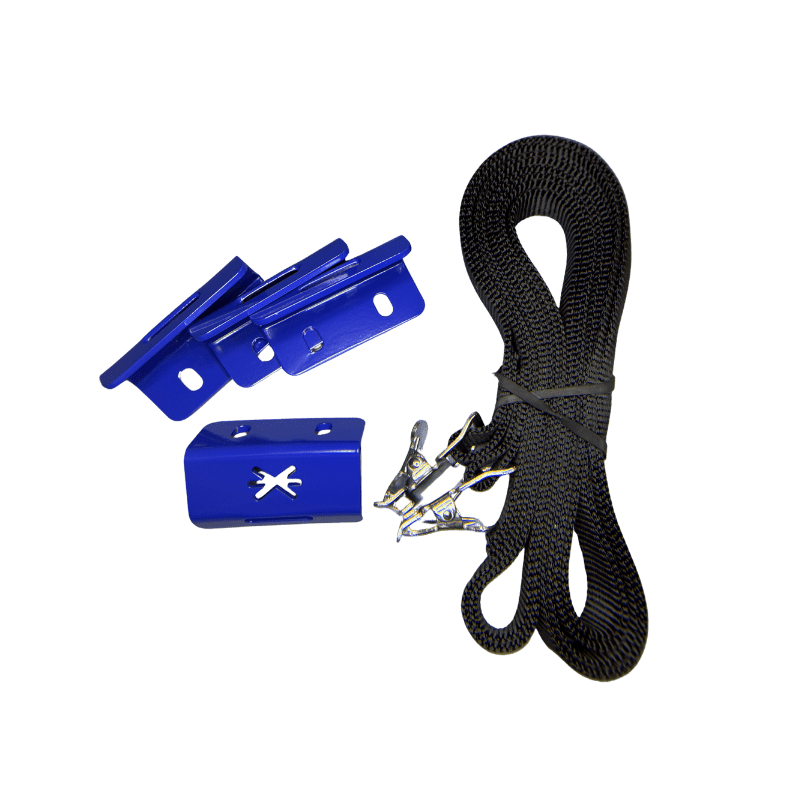

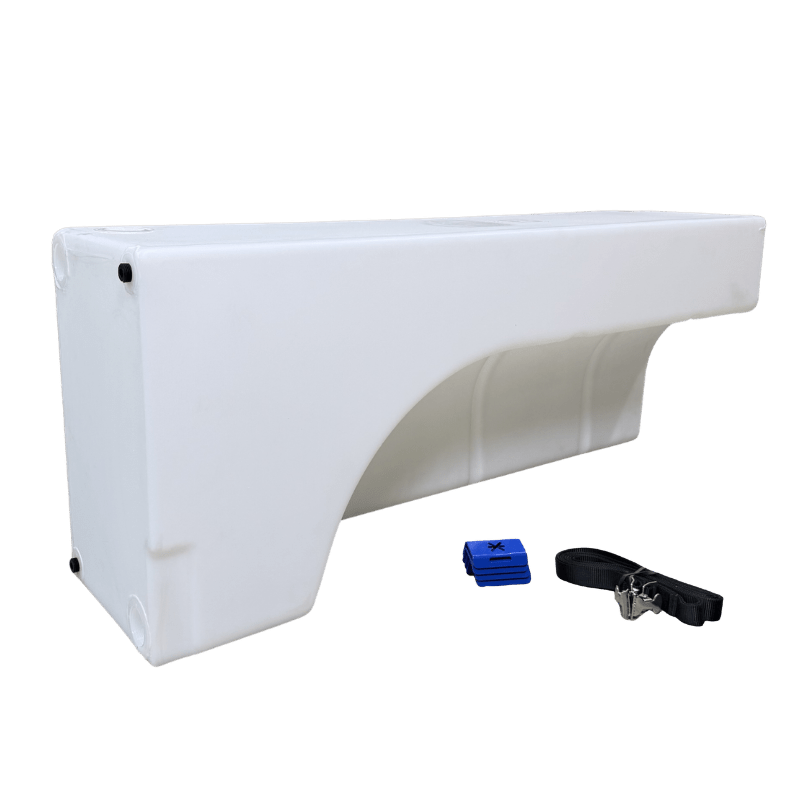

What's Included

[1] 33-Gallon Right Wheel Well Water Tank

[2] Adjustable Mounting Straps

[4] Mounting Brackets

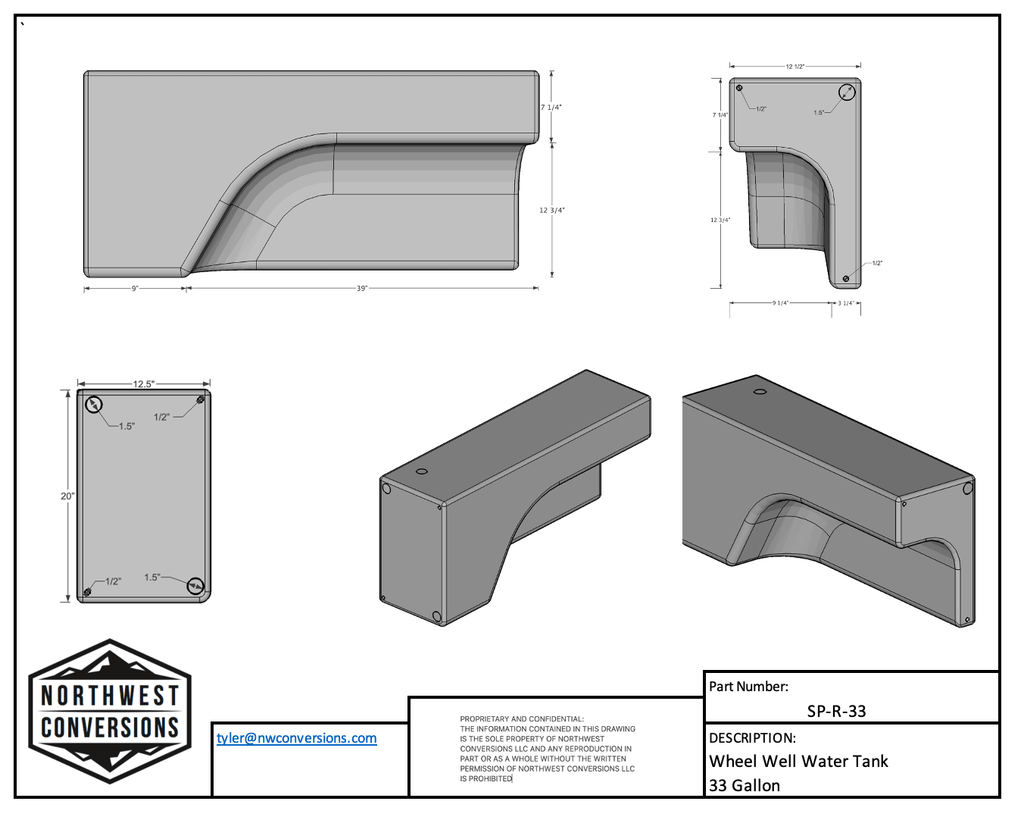

Technical Specifications
  • Capacity: 33 gallons
  • Dimensions: 48" L × 12.5" W × 20" H
  • Product Weight: 25 lbs (Empty)
  • Material: BPA-free, food-grade plastic
  • Certifications: IAPMO TS 4 Certified
  • Venting Required: Not designed for pressurized systems, must be vented

Plumbing Port Configuration:

  • Rectangular End: (2) 1.5" NPT ports (pre-marked, drill out to use) & (2) 1/2" NPT ports
  • Opposite End: (2) 1.5" NPT ports (pre-marked, drill out to use) & (1) 1/2" NPT port
  • Top: (1) 1.5" NPT port for fill or level sensor (pre-marked, drill out to use)

Frequently bought together:

Important Notes & Pro Tips

  • Venting Requirement: This tank is designed for non-pressurized systems and must be properly vented to open air to operate safely.
  • Drilling Sealed Ports: The 1.5" NPT ports arrive sealed from the factory to protect tank integrity. You must drill out these pre-marked areas to open them for plumbing.
