GoCode Ford Transit High Roof D Pillar Trim Kit

Standard

$500.00 USD

GoCode Ford Transit High Roof D Pillar Trim Kit

GoCode

GoCode Ford Transit High Roof D Pillar Trim Kit

$500.00 USD

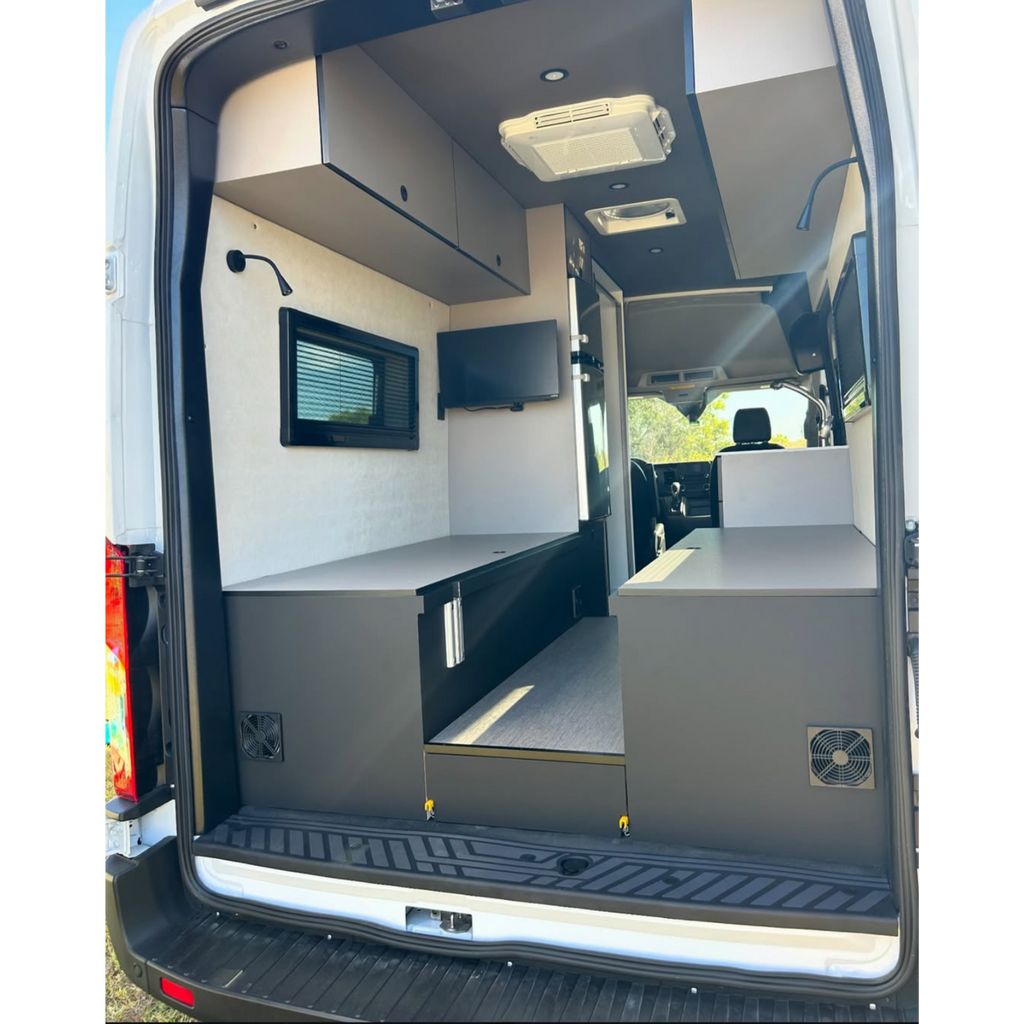

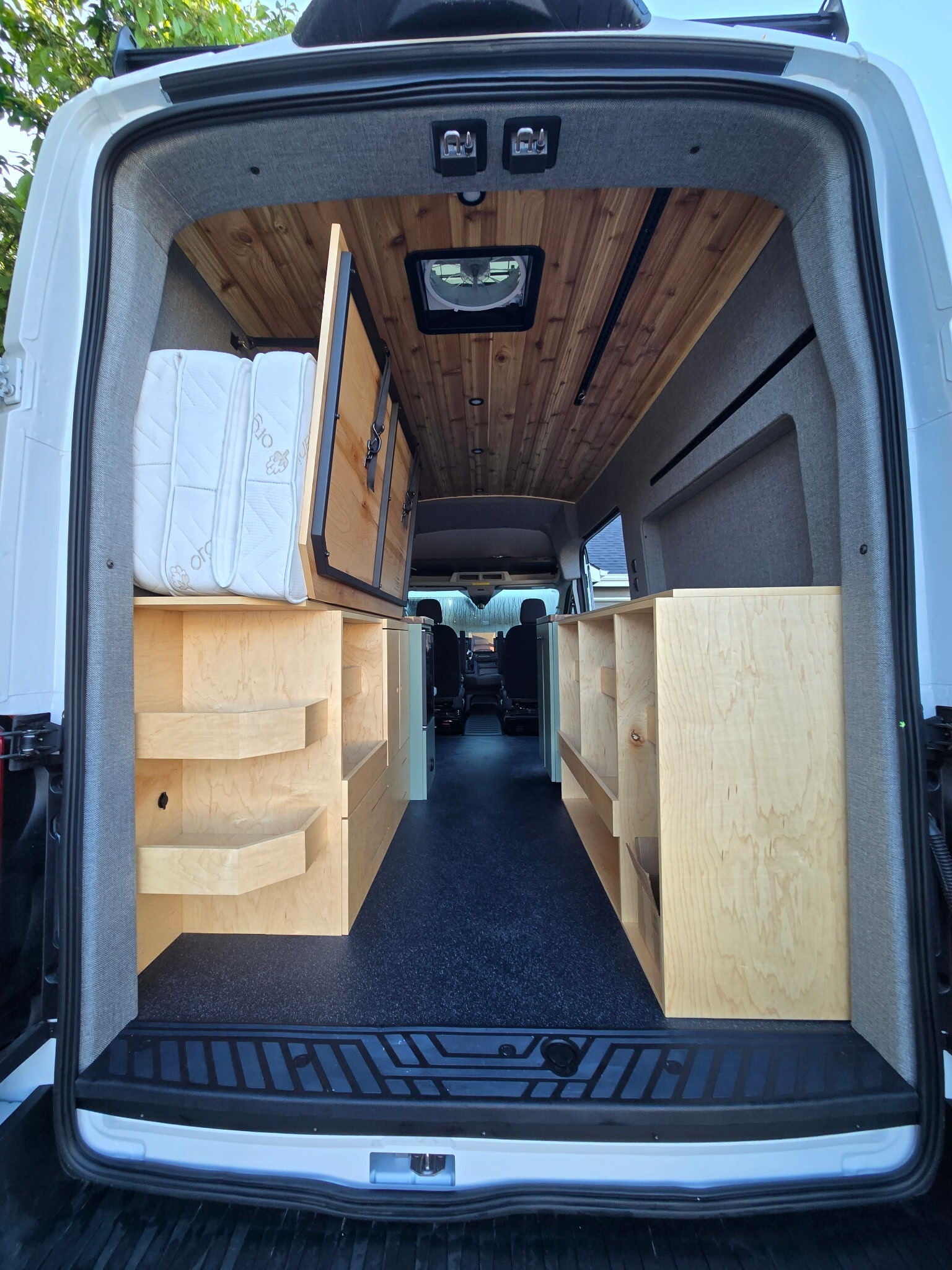

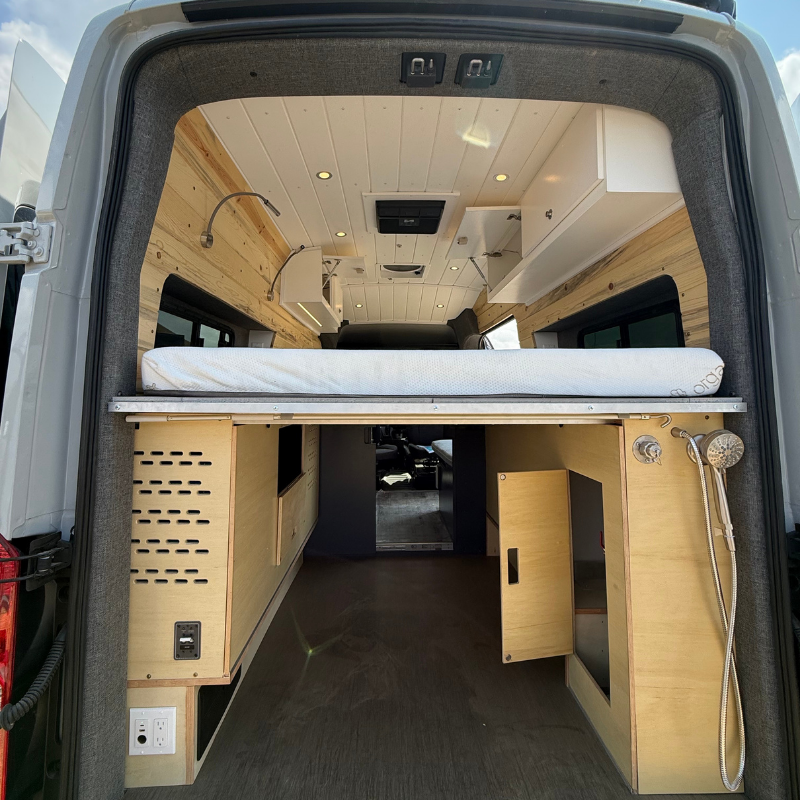

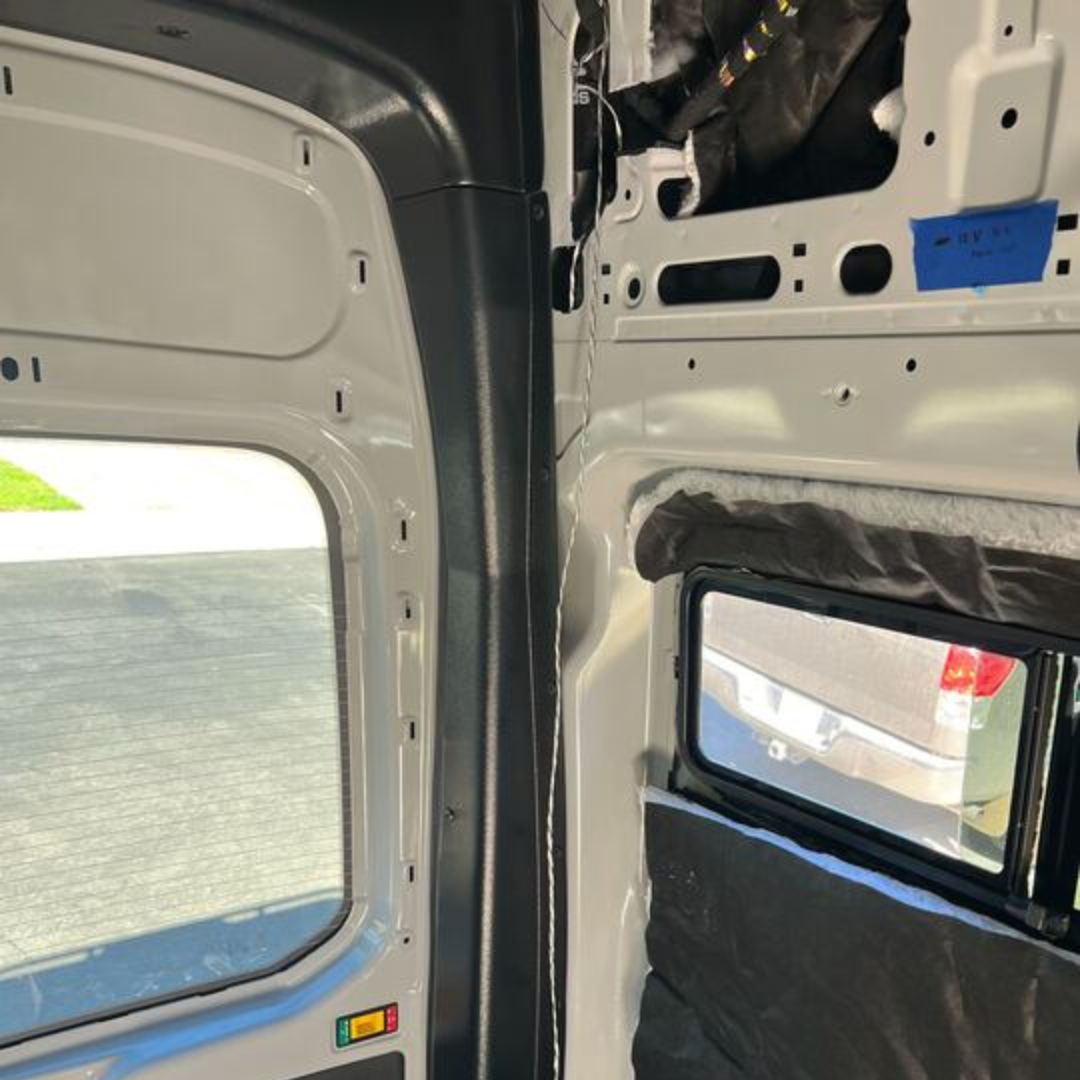

Clean up the rear threshold and door transitions of your rig with the GoCode Ford Transit High Roof D Pillar Trim Kit. This comprehensive 3-piece kit flawlessly covers the rear D-pillars and overhead transition area while routing and completely concealing the bulky factory wiring harness. Engineered by GoCode to replace hours of tedious custom carpentry and upholstery work, this kit provides a clean, professional finish that installs in under 30 minutes using factory alignment points.

Complete 3-Piece Rear Solution: Covers the overhead ceiling threshold and both vertical rear D-pillar transition zones for total coverage.

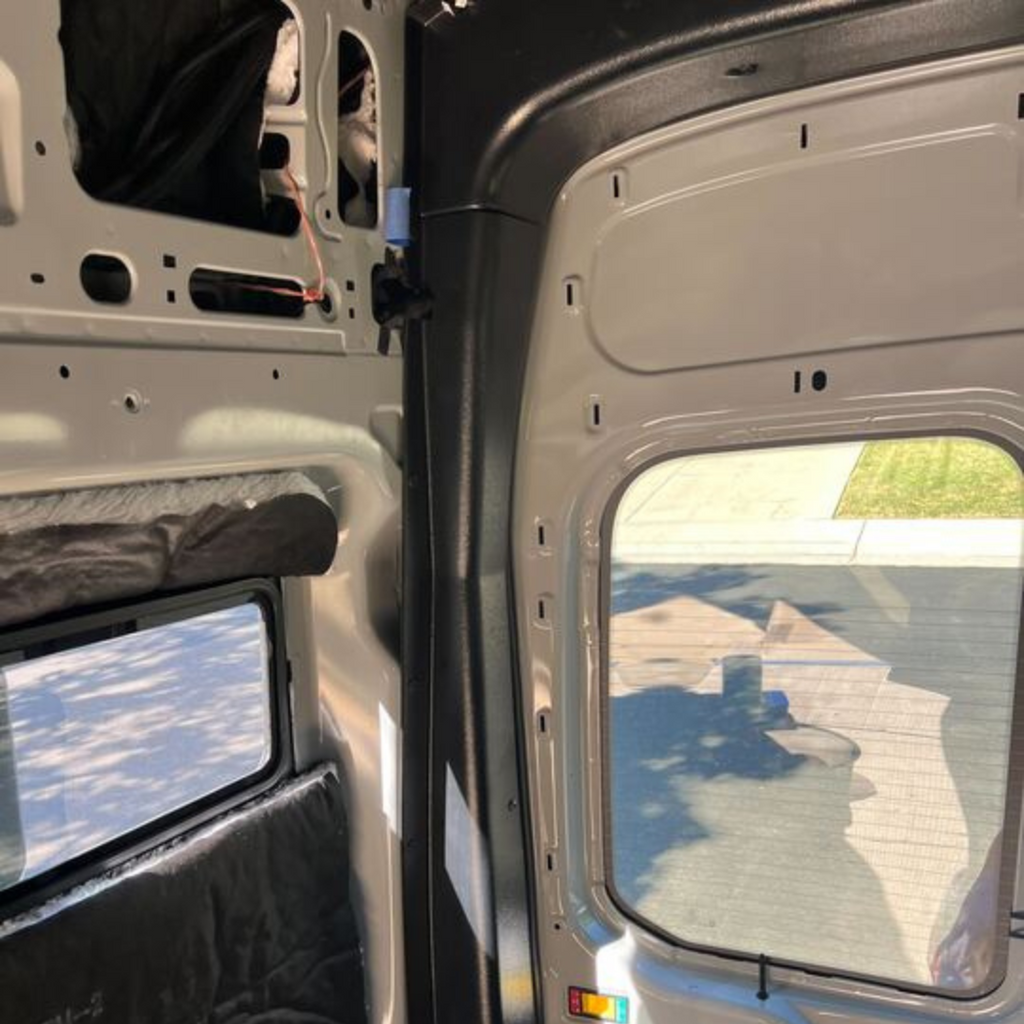

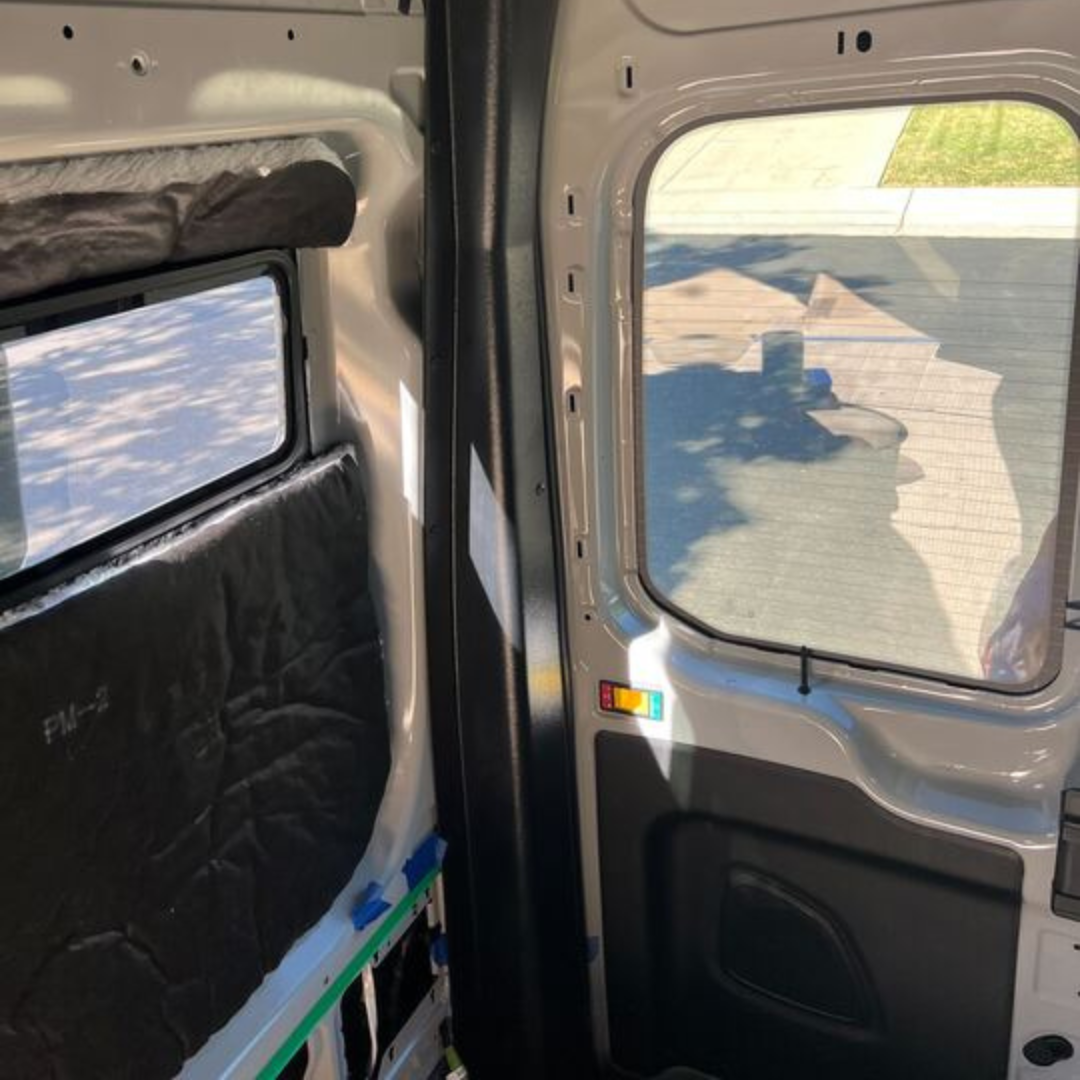

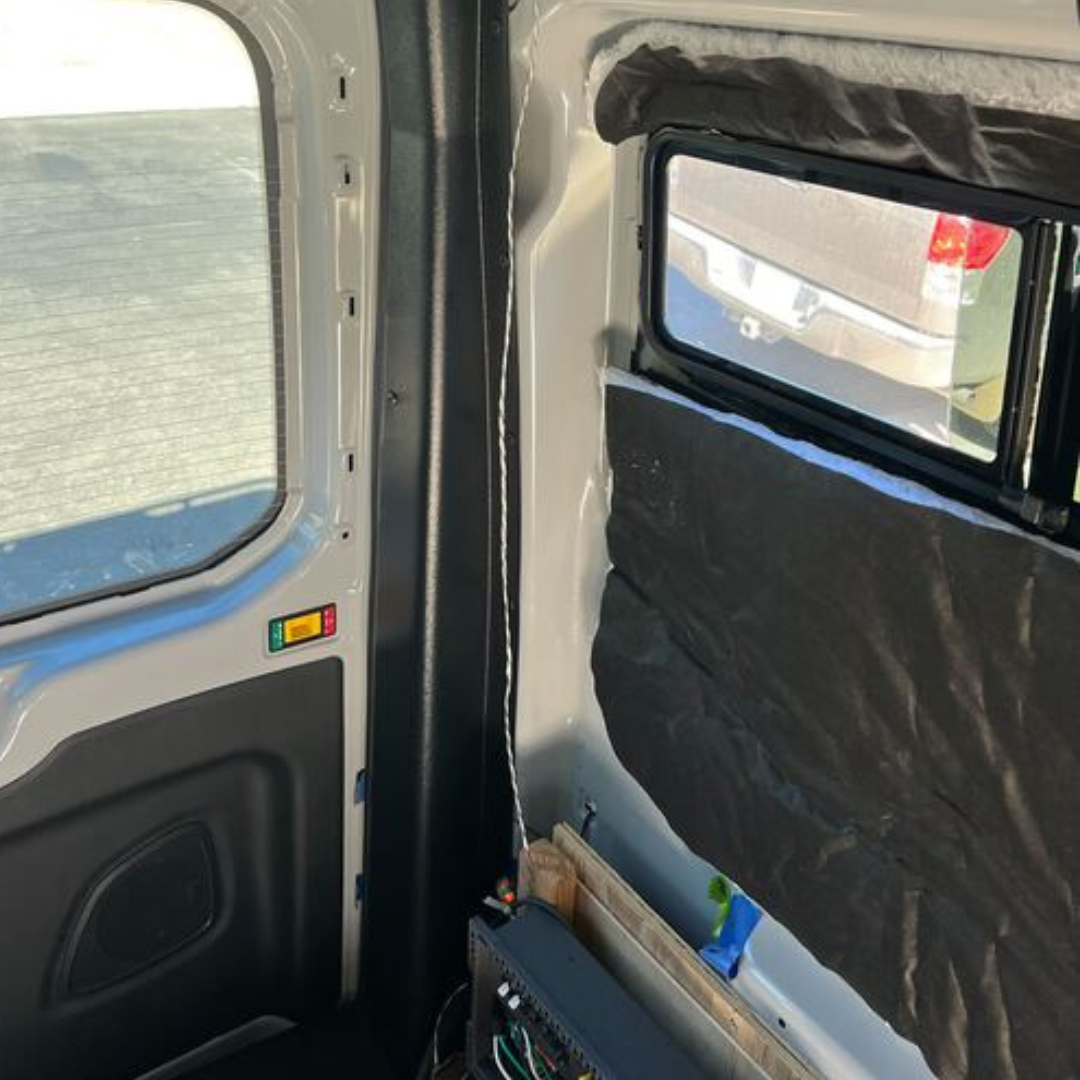

Conceals Factory Wiring: Cleverly routes and hides the exposed black factory wire harness safely out of sight behind the molded trim panels.
Built-In Panel Flanges: Features integrated flush flanges designed to receive your finished wall and ceiling panels on a perfect plane, ensuring a tight transition.
Heavy-Duty Construction: Formed from durable 3/16" ABS haircell plastic, built to handle the heavy use and scraping common at the rear cargo doors.

Make & Model: Ford Transit Cargo and Passenger vans (Model years 2015 to present).
Roof Height: High Roof models only.
Placement: Rear door threshold and D-pillars (the very back of the van).

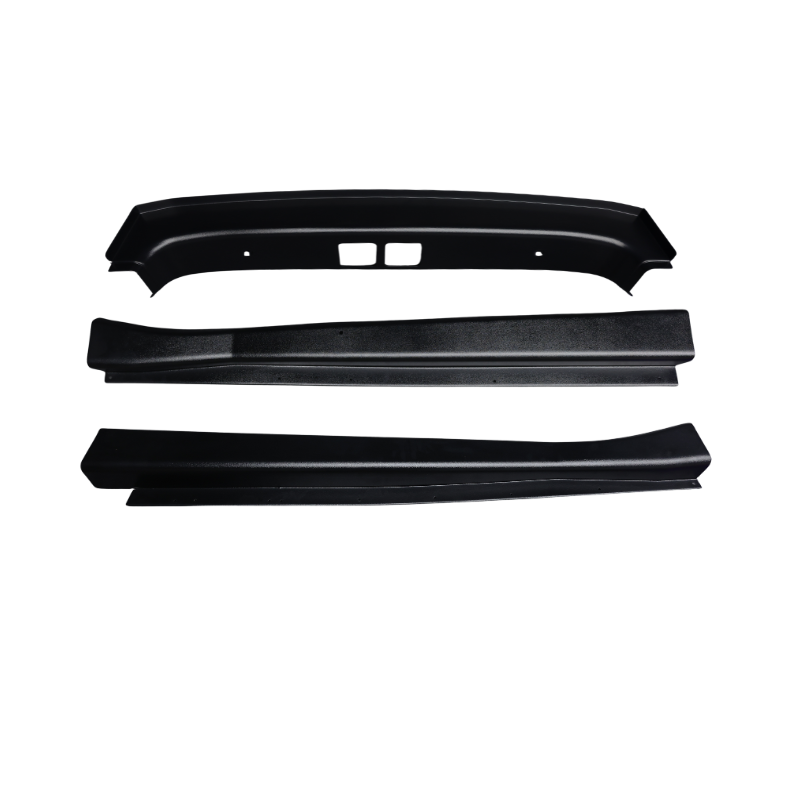

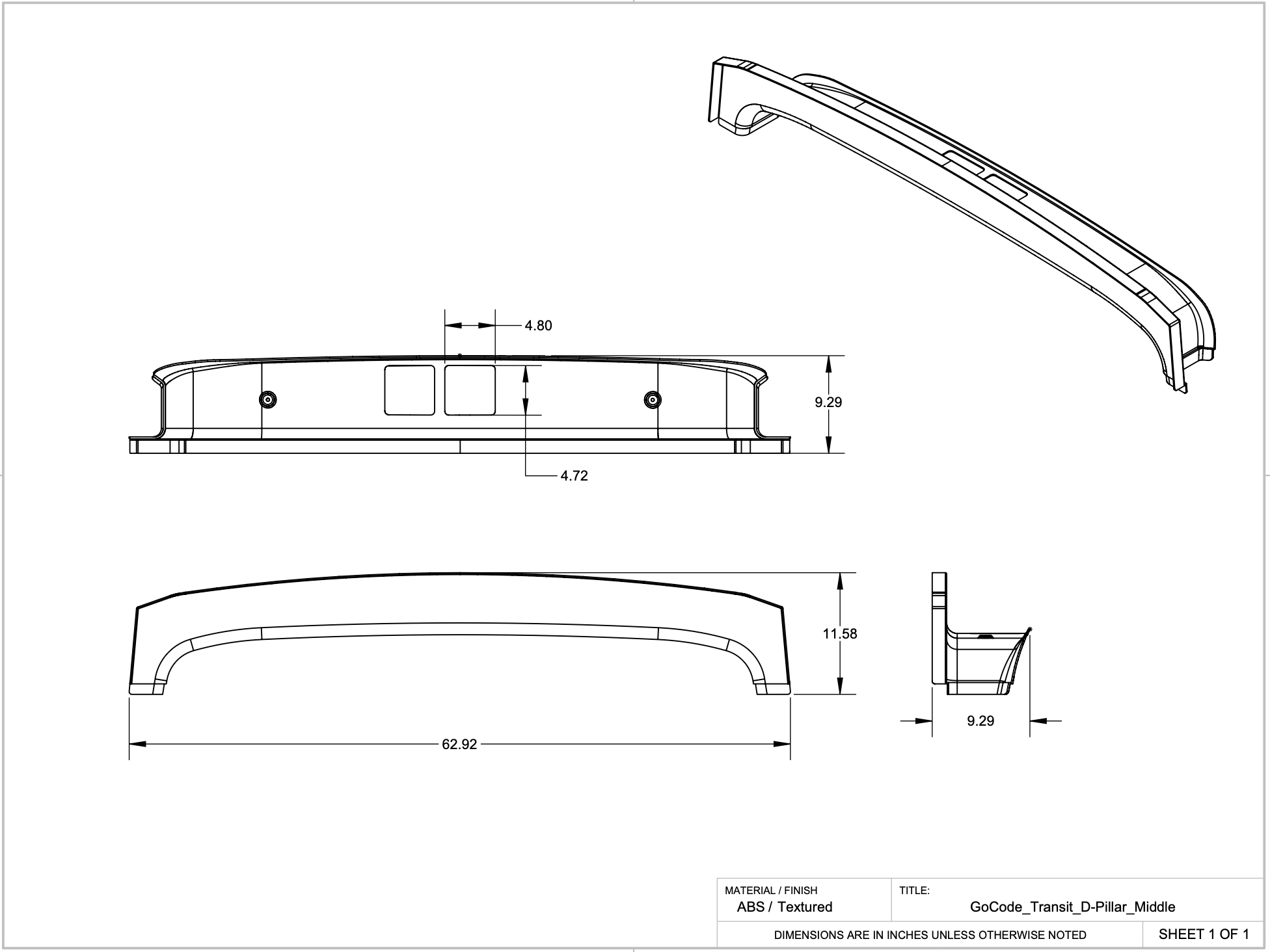

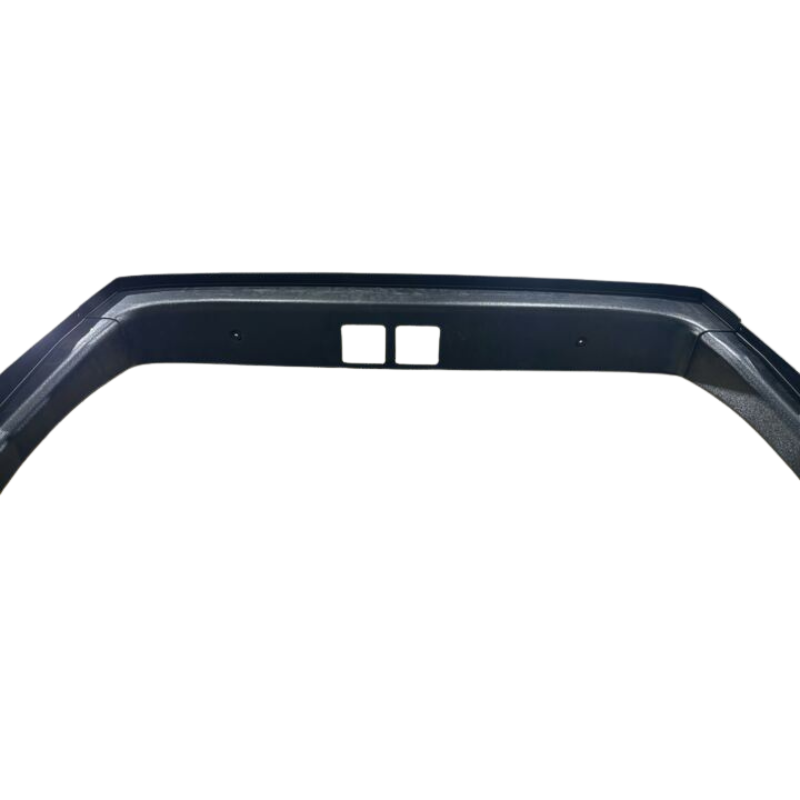

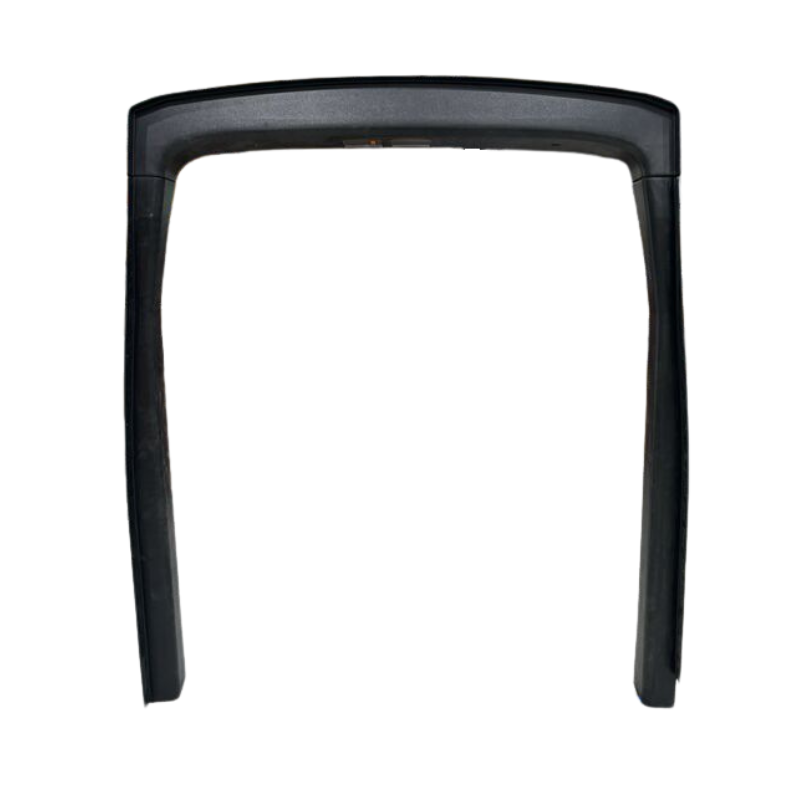

[1] Overhead Rear Threshold Trim Piece

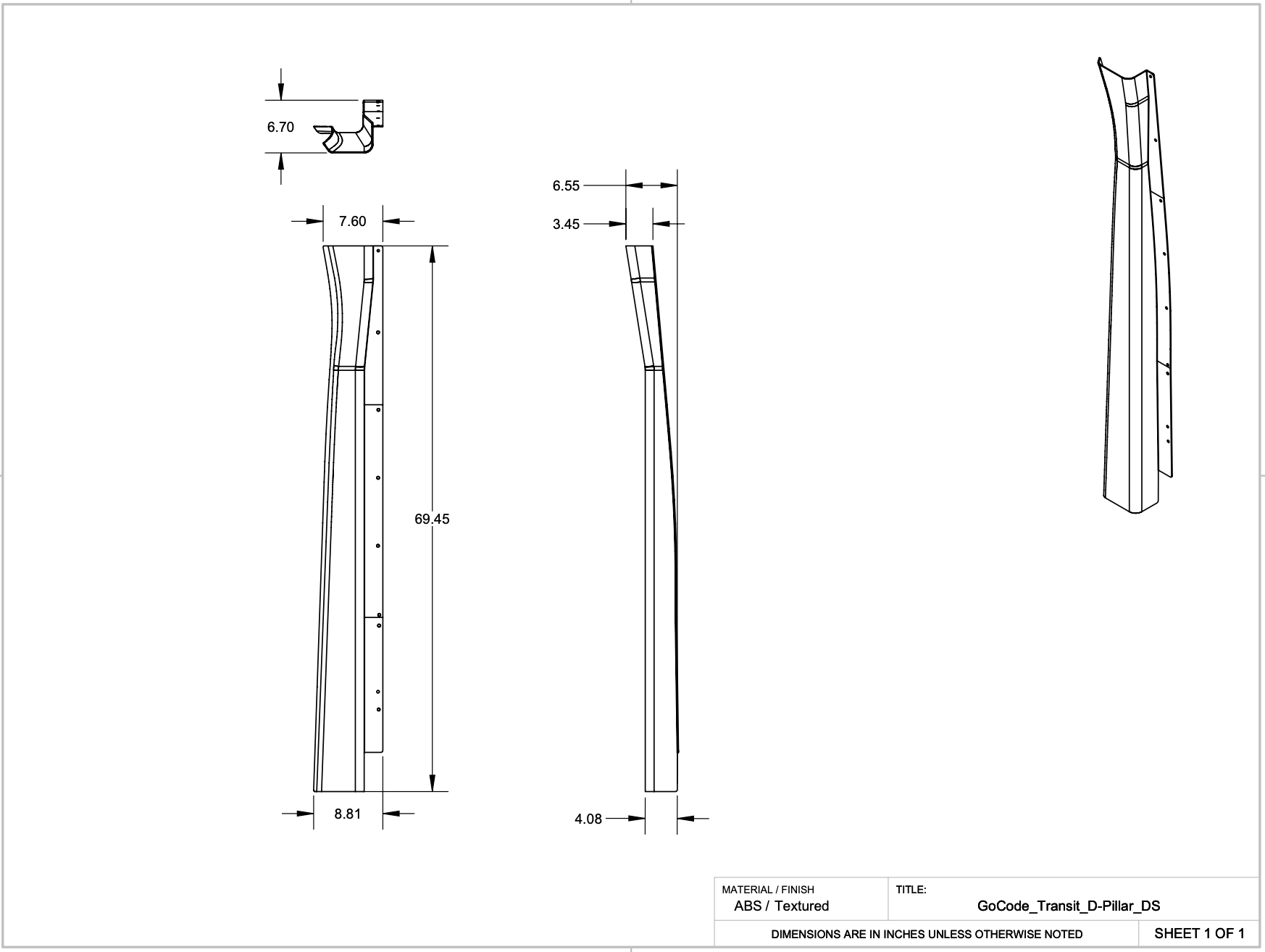

[2] Vertical D-Pillar Side Trim Pieces (Driver and Passenger sides)

[1] Complete Installation Hardware Kit (Includes 1/4-20 bolts, 3/8-16 bolts, and 1/4-20 rivnuts)

Finish Options: Available in Standard Raw ABS plastic, Painted (SEM Ultra Black matte finish), or Upholstered in premium Marathon Tweed fabric (Grey Heather, Black, or Toast).

Fulfillment & Shipping Lead Times:

Standard Raw ABS: Ships in 1 business day.
Painted: Ships in 3 business days.
Upholstered Fabric Variants: Ships in 2 weeks.

Frequently bought together:

Important Notes & Pro Tips

Install Before Paneling: For best results, install this entire kit before hanging your final ceiling and wall panels so they can slide cleanly behind the integrated flanges.
Mark and Set Rivnuts: Position the overhead and vertical panels to mark your mounting hole locations. Drill the marked holes to 23/64”, then install the provided 1/4-20 rivnuts into the van frame.
Thread Locker Recommended: Apply a drop of thread locker (like Loctite) to all bolts during assembly to prevent them from loosening over time from road vibration.
Secure the Overhead & Verticals: Mount the overhead piece first using two 1/4-20 bolts. Next, position the vertical side panels and secure them with five 1/4-20 bolts on each side.
Anchor the Verticals: Complete the installation by threading one 3/8-16 bolt directly into the existing factory threaded holes on both the driver and passenger sides.
