NW Conversions 16 Gallon Transit Undercarriage Water Tank (TR-UC-16)

NW Conversions 16 Gallon Transit Undercarriage Water Tank (TR-UC-16)

$299.00 USD

Shipping Calculated at Checkout

Calculated Shipping

This item ships directly from the manufacturer and does not qualify for free shipping. Shipping rates vary based on destination; shipping rate will be calculated at checkout.

Orders typically ship within 2-3 business days. Once shipped, transit time is typically 4-5 business days. Orders often ship in multiple packages. The shipment tracking information you recieve will include tracking for each package in the shipment.

What is the return policy?

Returns are accepted within 30 days from ship date at the customer’s expense. Item must be in original unused condition to be eligible for return. Please review our Return Policy for more information.

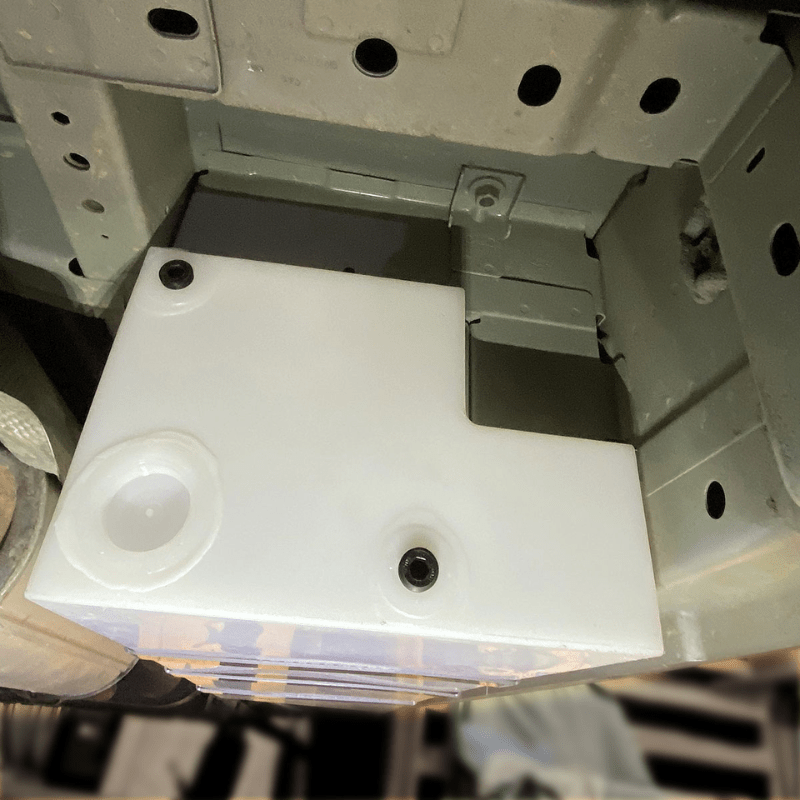

Maximize your Transit’s water capacity with the NW Conversions 16-Gallon Transit Undercarriage Water Tank (TR-UC-16). This flexible undercarriage tank mounts beneath the vehicle floor on either the passenger side under the slider door or the driver side next to the fuel tank, giving you placement versatility based on your build layout. Suitable for fresh or grey water, it provides off-grid capacity while remaining compatible with factory Transit Trail running boards.
Key Features
  • Flexible Dual-Side Placement: Mounts underneath either the passenger side (under the slider door) or the driver side (next to the fuel tank) to match your layout needs.
  • Running Board Compatibility: Engineered to fit the Ford Transit Trail with factory running boards, as well as Owl running boards, without structural interference.
  • Food-Grade Construction: Molded from BPA-free, food-grade polyethylene, ensuring a safe fresh water supply or durable grey water containment.
  • Certified Quality: Manufactured in the USA and certified to meet strict IAPMO TS-4, TEI, and RVIA standards.

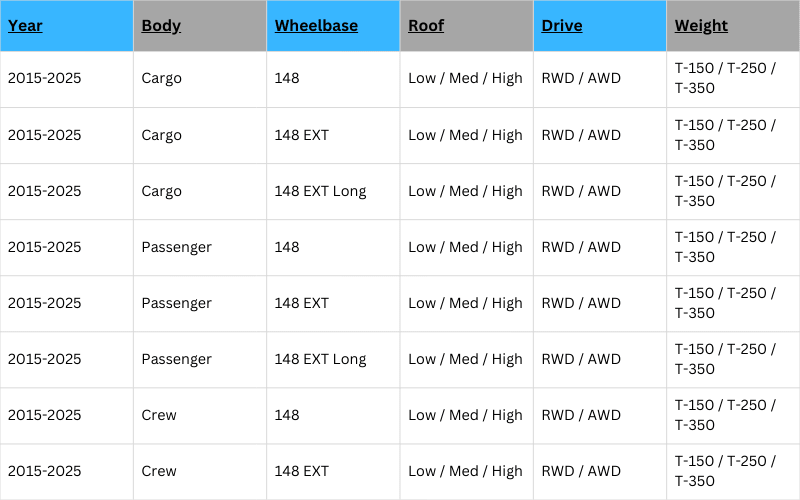

Van Compatibility
  • Make & Model: Ford Transit cargo and passenger vans (Model years 2014 to present).
  • Wheelbase: Confirmed fit for all wheelbases, including 130", 148", and 148" Extended (EXT).
  • Placement Options: Fits the passenger-side undercarriage or driver-side undercarriage.
  • Step Integration: Compatible with factory Transit Trail steps and Owl running boards. Other aftermarket running boards may require minor bracket modification.

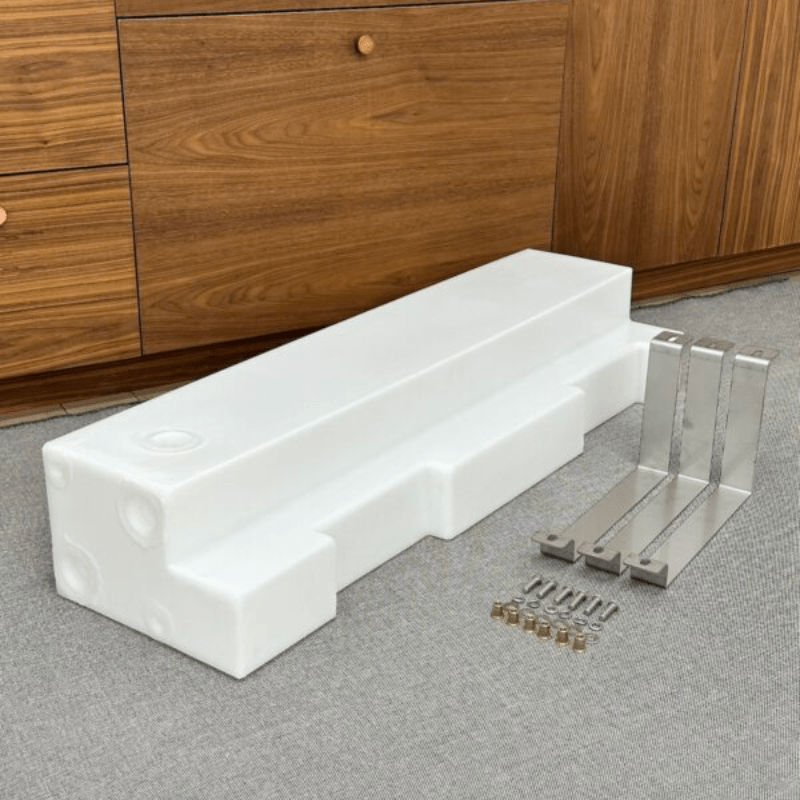

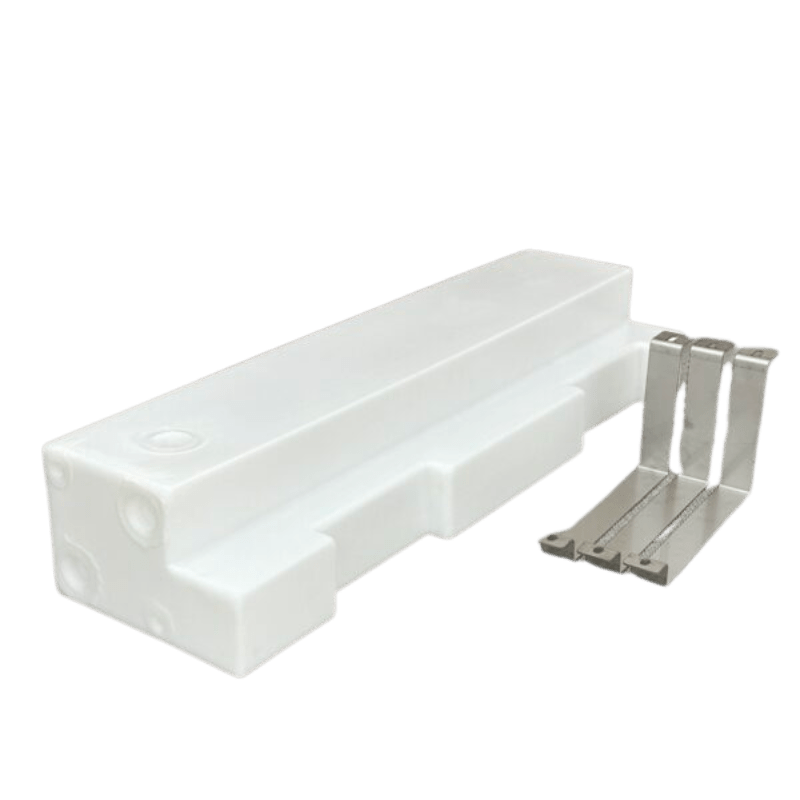

What's Included

[1] 16-Gallon Undercarriage Water Tank

[3] Stainless Steel Laser-Cut Mounting Straps

[1] Stainless Steel 3/8" Hardware Pack

[1] Set of 3/8" Rivnuts

Please Note: A rivnut tool is required for installation and is not included.
Technical Specifications
  • Capacity: 16 gallons

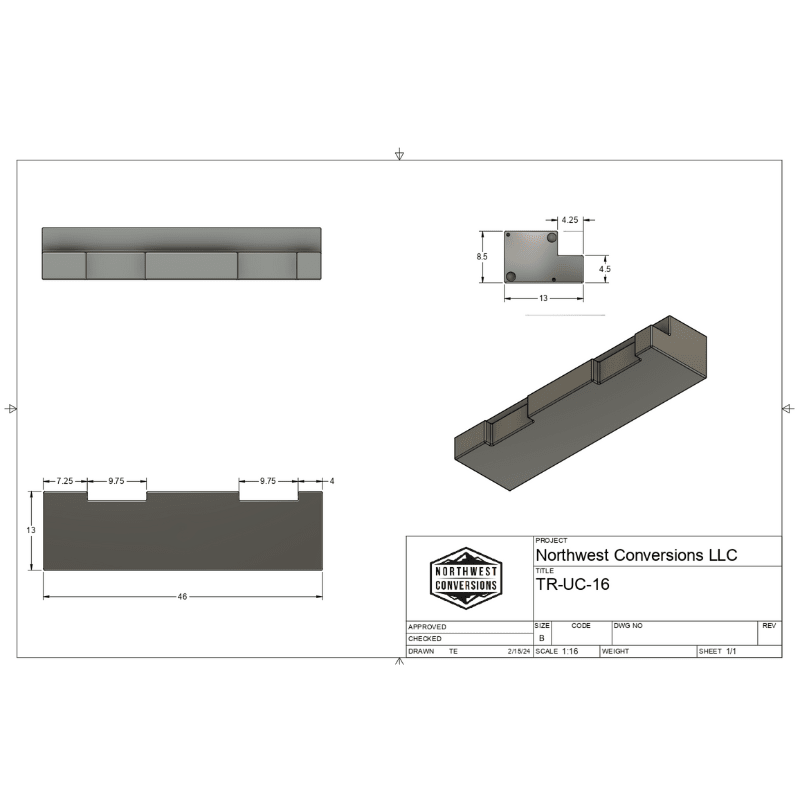

  • Dimensions: 48″ L × 13″ W × 8.5″ H
  • Product Weight: 14 lbs (Empty)
  • Material: BPA-free, food-grade polyethylene
  • Certifications: IAPMO TS-4 Certified / TEI Listed / RVIA Approved
  • Venting Required: Not designed for pressurized systems, must be vented

Plumbing Port Configuration:

  • Rear-Facing End: (1) 1.5″ NPT port & (2) 1/2″ NPT ports

Frequently bought together:

Important Notes & Pro Tips

  • Venting Requirement: This tank is designed for non-pressurized systems and must be properly vented to open air to operate safely.

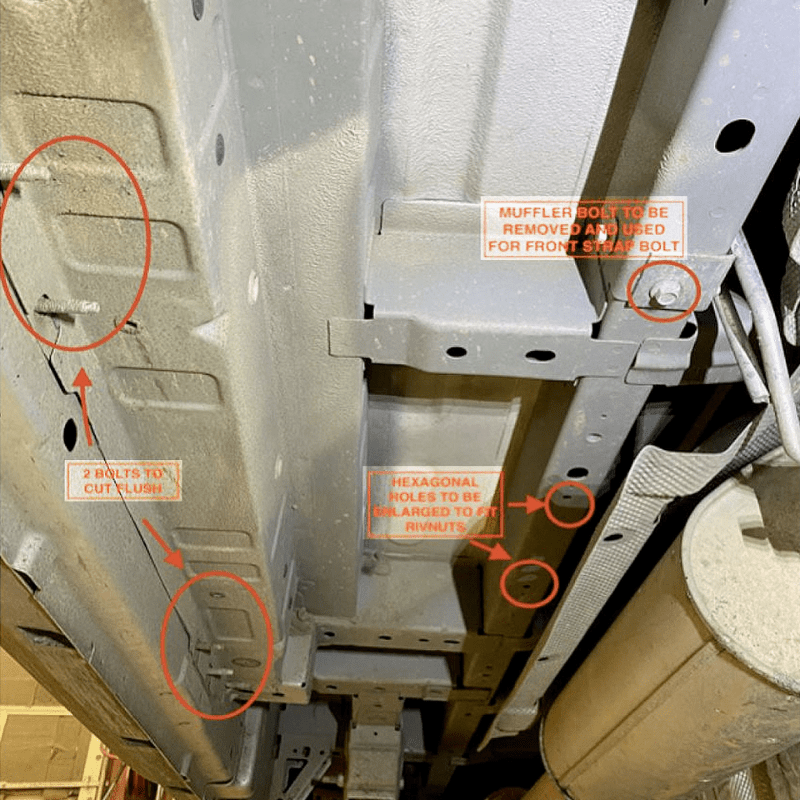

  • Rivnut Tool Required: Securing the mounting straps requires setting the included 3/8" rivnuts into the chassis. Ensure you have a dedicated rivnut tool on hand before beginning installation.
  • Aftermarket Step Clearance: While this tank contours around factory Transit Trail and Owl steps, other aftermarket running board systems may require minor modifications to the brackets for clear fitment.
